2711P-RP1 2711PRP1 AB AB PV Plus 64MB Flash Ram DC Logic Module
⇒ Click here for good price 2711P-RP1
| Brand/Manufacturer |
AB /USA |
| Part Number |
2711P-RP1
|
| Alternate Part Number |
2711P-RP1 |
| Description |
MOTOR SERVO |
| Dimennsions |
20.8x14x4.5cm
|
| Weight |
0.66kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details

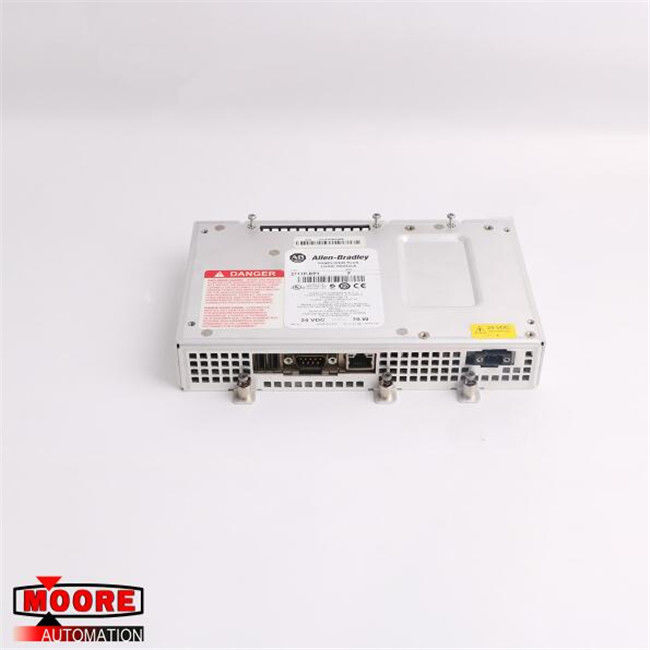

The AB 2711P-RP1 is a PanelView Plus logic module. This module is combined with AB PanelView series display modules to form a fully operating HMI unit. It is compatible with the PanelView Plus 700 to 1500 series display modules, but not with the PanelView Plus 6 terminals. The 2711P-RP1 has a 24 Volts DC power supply connector on the back side of the device. While operating, this unit consumes 70 Watts of energy. The 2711P-RP1 is compatible with many PanelView Plus terminals. The 2711P-RP1 has 64 MB of flash memory and 64 MB of RAM. It is bolted with 6 screws to the display module and it can carry a communication module which is attached to it after removing the grey label on the back side of the logic module. Always make sure that the display module is not power supplied when connecting the logic module to it. The WordPad text editor, Media Player, and remote desktop connection are some of the extended optional features available with this module.
The 2711P-RP1 supports 2 USB connectors, 1 RS-232 connector, and 1 Ethernet port. It also has one CompactFlash Card Slot for inserting memory cards. Do not insert memory cards while the device is powered on. The 2711P-RP1 logic module is configurable with the FactoryTalk View ME Software to support both simple and complex industrial automation applications. The module works safely only in surroundings with an ambient temperature between 0 and 55 degrees Celsius. The only maintenance that this unit requires is a visual inspection of the connectors and some cleaning from accumulated dust from time to time. The 2711P-RP1 works on 24 Volts of DC power. This module has built-in status indicators for process identification. Other slots available are the USB, CompactFlash, and Ethernet slots for efficient communication.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
