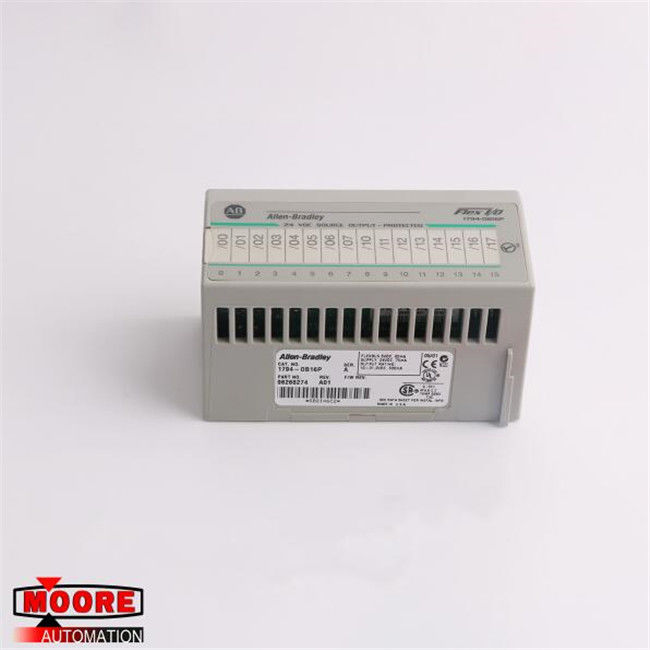

1794-OB16P 1794OB16P AB AB Flex 16 Point Digital Output Module
⇒ Click here for good price 1794-OB16P
| Brand/Manufacturer |
AB/USA |
| Part Number |
1794-OB16P
|
| Alternate Part Number |
1794-OB16P |
| Description |
MOTOR SERVO |
| Dimennsions |
9.4x4.5x5.5cm
|
| Weight |
0.08kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1794-OB16P is a FLEX 24 Volts DC Series A digital I/O module. It has 16 source outputs that are non-isolated and protected and has been conformally coated, with 0.5 Amps for each output. It can handle overloads, high temperatures, and shorts because it features self-protection. Once the problem is solved, the faulted output will return automatically; however, feedback to the processor will not. This module can communicate on ControlNet, DeviceNet, PROFIBUS, and EtherNet/IP networks and comes with an RS-232 communication port. The 1794-OB16P module uses screw clamp terminations and it can only be mounted on a DIN rail and only use the following terminal base units: the 1794-TB3, 1794-TB3K, 1794-TB2, 1794-TBN, 1794-TBNK, 1794-TB3S, and the 1794-TB3SK.
It has an external DC supply voltage range of 10 to 31.2 Volts DC, with the 5% AC ripple included, and an external DC supply current range of 25 to 75 mA. The 1794-OB16P’s on-state voltage range is also 10 to 31.2 Volts DC. Its on-state output voltage drop is 0.5 Volts DC. The minimum current on-state output is 1 mA per channel and the maximum is 500 mA per channel or 8 Amps per module. This module also has a leakage current of 0.5 mA for off-state output and a maximum output surge current of 1.5 Amps for 50 milliseconds that is repeatable every 2 seconds. Note that this module does not have any isolation between the individual channels.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
