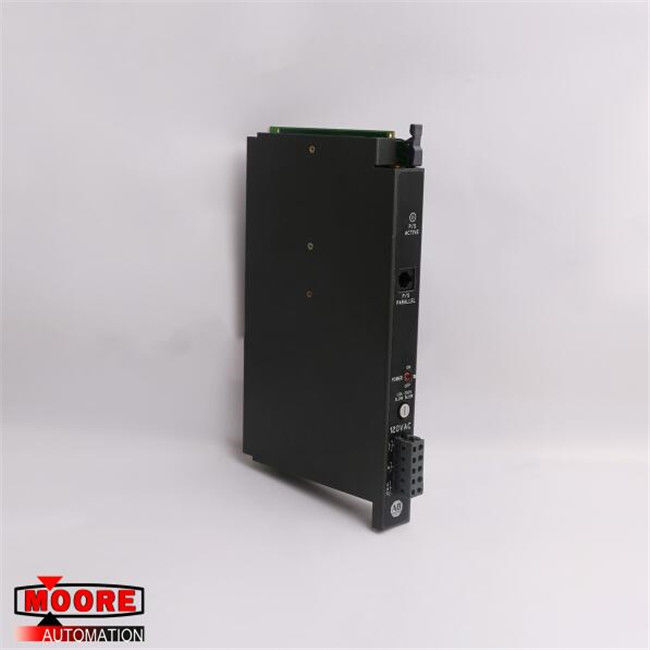

1771-P4S 1771P4S AB AB Power Supply
⇒ Click here for good price 1771-P4S
| Brand/Manufacturer |
AB/USA |
| Part Number |
1771-P4S
|
| Alternate Part Number |
1771-P4S |
| Description |
MOTOR SERVO |
| Dimennsions |
2.8x16.2x25.5cm
|
| Weight |
0.86kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1771-P4S PLC 5 power supply module is a chassis power supply module by AB that is fitted on a single slot of the 1771 I/O chassis, and it uses a nominal power input of 120 Volts AC. The module has a voltage range of 97 to 132 Volts AC with a real input power rating of 59 W and apparent power of 89 VA at a 50 to 60 Hertz line frequency. It offers an output voltage of 5.06 Volts DC and it supplies 8 Amps of maximum current at 5 Volts DC and it may be used with an optional 150 Amps recommended transformer. The 1771-P4S provides circuit voltage isolation tested for 1 second at 2160 Volts DC and it offers 15 Amps of branch circuit protection and the module is fused with a 125 Volts, 5 Amps slow-blow fuse, a Bussman MDX 1. 5 fuse, or a Littel 313001. 5 fuse.
The 1771-P4S dissipates 4 Watts maximum heat at 2 Amps, 17 Watts maximum heat at 8 Amps when operational, and 10 Watts maximum heat from an adjacent slot. The module has a power loss delay period of 13. 6 milliseconds (+/-3. 6 milliseconds) and the module's circuitry is adapted to a 14 AWG copper wire size with 3/64-inch maximum insulation. It can be keyed properly on the chassis by connecting the connection bands between pins 12 and 14, and pins 20 and 22 of the backplane top connector. The 1771-P4S has an operational temperature range between 0 and 60 degrees Celsius at a 5 to 95% non-condensing humidity rating and it is UL and CSA-certified. The module weighs about 1.04 kilograms (2. 3 pounds) and is built in an open enclosure.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
