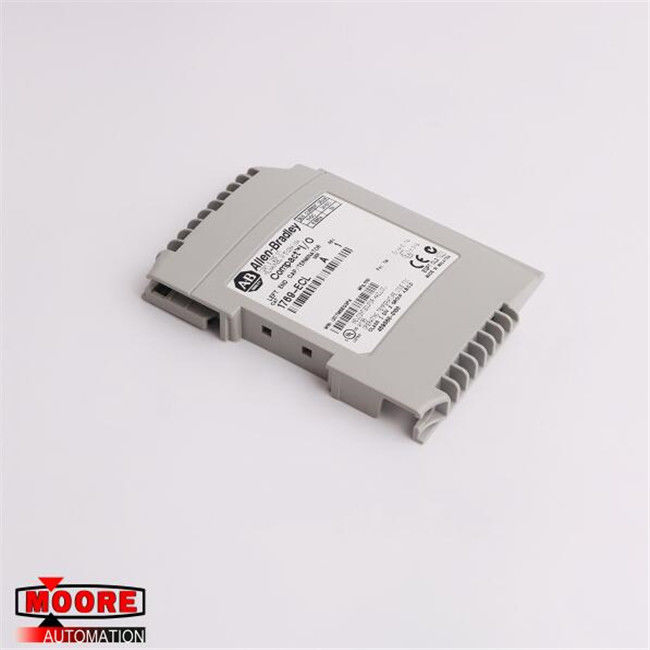

1769-ECL 1769ECL AB AB CompactLogix Left End Cap
⇒ Click here for good price 1769-ECL
| Brand/Manufacturer |
AB/USA |
| Part Number |
1769-ECL
|
| Alternate Part Number |
1769-ECL |
| Description |
MOTOR SERVO |
| Dimennsions |
8.8x11.8x1.5cm
|
| Weight |
0.04kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1769-ECL is a left-end cap or terminator that is a part of a 1769 controller. The 1769-ECL terminates the end of the controller’s communication bus. It is for Micrologix 1500 or Compactlogix devices. Its greatest bus current draw is 5 mA at 5V DC. It comes with a 6562 feet operating altitude and has a North American temperature code of T3C but no IEC temperature code. It has an approximate shipping weight of 0.286 lbs and an open-type enclosure rating to ensure safety which can adapt it to certain conditions such as reducing the risk of fire.
The 1769-ECL has an operating temperature of 32 - 140 °F tested at cold, dry heat, and thermal shock. It has a non-operating temperature of -40 - 185 °F tested unpackaged during cold, dry heat and thermal shock. The AB 1769-ECL has a 5 - 95% noncondensing relative humidity. Its vibration reaches 5 g at 10 - 500 Hz when operating. It has an operating shock of 20 g when DIN rail mounted and one of 20 g when panel-mounted. The 1769-ECL’s non-operating shock is 30 g on a DIN rail mount and 40 g on a panel mount. It has Group 1, Class A emissions and ESD immunity 8 kV air discharges.
