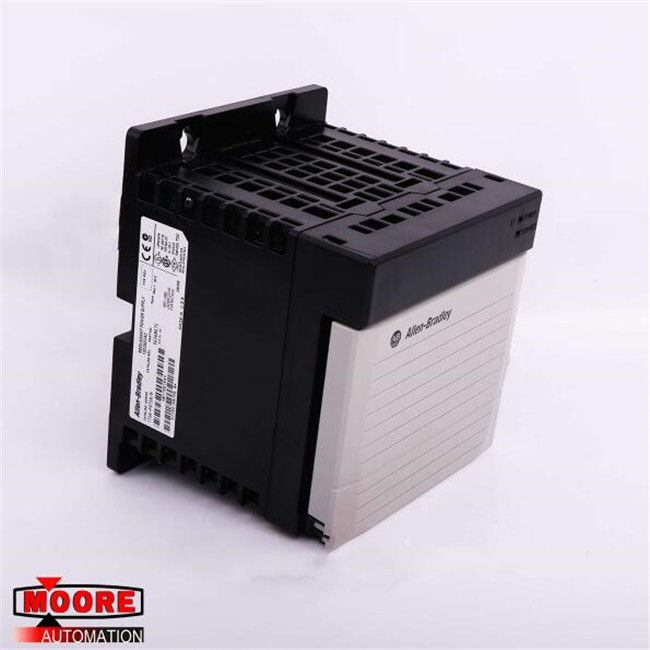

1756-PA75R 1756PA75R AB AB ControlLogix AC Redundant Power Supply

Name: 1756-PA75R 1756PA75R AB AB ControlLogix AC Redundant Power Supply
Brand: MOORE AUTOMATION LIMITED
SKU: 1756-PA75R
Availability: InStock

Product Details:

Place of Origin:	USA
Brand Name:	AB
Certification:	CO.CQ
Model Number:	1756-PA75R

Detail Information

Place of Origin:

USA

Brand Name:

Certification:

CO.CQ

Model Number:

1756-PA75R

Manufacture Year:

2020

Con 6DS1311-8AEtrol System:

1756-PA75R

Application:

Nuclear Power Plant

Lead Time:

In Stock

Description:

Weight:

4lbs

Highlight:

High Light

Highlight:

1756-PA75R

Power Supply

AB 1756-PA75R

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

today

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

1756-PA75R 1756PA75R AB AB ControlLogix AC Redundant Power Supply

⇒ Click here for good price 1756-PA75R

Brand/Manufacturer	AB/USA
Part Number	1756-PA75R
Alternate Part Number	1756-PA75R
Description	MOTOR SERVO
Dimennsions	14.2x17.5x13.2cm
Weight	1.45kg

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The 1756-PA75R AB ControlLogix Redundant Power Supply comes with an automated chassis that shares the load between excessive power supplies. The AB 1756-PA75R has an input voltage of 120-220V AC. The input frequency of this power supply is 47-63 Hz. This power supply has an isolation voltage of 250V continuous. The dimensions of the 1756-PA75R are approximately 6.9 x 5.7 x 5.4 inches. The weight of this power supply is around 3.2 lb and the annunciator and conductor wire category of this power supply are Category 3 and Category 1 respectively. The annunciator wire size of the 1756-PA75R is 22-14 AWG stranded at 167 °F and made of copper. The conductor wire size of this power supply is 14 AWG.

The AB 1756-PA75R has a surge-transient immunity that is based on the IEC 61000-4-5. The surge transient immunity of this power supply is ± 1 kV line-line (DM) and it is ± 2 kV line-earth (CM) on the signal ports. The Conducted RF immunity of the 1756-PA75R is 10 Vrms with a 1 kHz sine-wave of 80% AM from 150 kHz to 80 MHz. The 1756-PA75R is considered to be a Class 1, Class A Appliance in accordance with IEC / CISPR Publications 11. Keep in mind that under proper precautions there may be potential difficulties in ensuring electromagnetic compatibility in other environments due to disruption and radiation.

1756-PA75R 1756PA75R AB AB ControlLogix AC Redundant Power Supply 0

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
