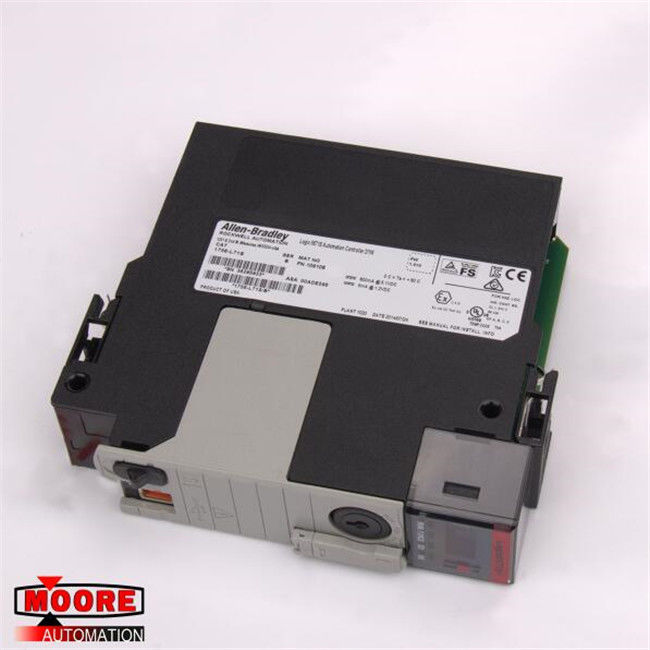

1756-L71S 1756L71S AB AB Automation Controller
⇒ Click here for good price 1756-L71S
| Brand/Manufacturer |
AB /USA |
| Part Number |
1756-L71S
|
| Alternate Part Number |
1756-L71S |
| Description |
MOTOR SERVO |
| Dimennsions |
14.3x13x3.4cm
|
| Weight |
0.25 kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-L71S is a GuardLogix 5570 controller that is a part of the Logix5000 family of controllers. It is a ControlLogix controller with safety features. It is a dual processor solution which must be used with a 1756-L7SP safety module to meet SIL 3 or Cat. 4/PLe safety standards. The safety partner controller is automatically configured, providing major benefit being a single project. It has great processing capabilities and speed for motion and high-performance logic. It has a USB port for communication and it can support up to 500 controller connections.
The 1756-L71S controller has 2MB of user memory, 1MB Safety Memory, and 0.98MB of I/O memory. It can support 128,000 digital I/O and 4000 Analog I/O. It draws a current of 5mA at 1.2V DC and 800mA at 5.1V DC. Its power dissipation is 2.5W and its thermal dissipation is 8.5 BTU/hr. It weighs 0.55lbs and has an isolation voltage of 30V (continuous) for basic insulation. It can be installed in any slot in a ControlLogix 1756 Chassis. For safe communication, it uses ControlNet, DeviceNet, or EtherNet/IP networks. It is programmed using RSLogix 5000 software with relay ladder logic for safety tasks.
The 1756-L71S controller can control or monitor I/O over the backplane or through I/O links. For controller diagnostics, it has a front display that provides runtime information. It functions using the 1756-ESMCAP and the 1756-ESMCAPK Energy Storage Module, which means that lithium batteries are not needed. A 1 GB (1784-SD1) Secure Digital card comes pre-installed as an optional non-volatile storage which can be expanded up to 2 GB (1784-SD2).
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
