1756-L61 1756L61 AB AB ControlLogix 2 MB Memory Controller
⇒ Click here for good price 1756-L61
| Brand/Manufacturer |
AB/USA |
| Part Number |
1756-L61
|
| Alternate Part Number |
1756-L61 |
| Description |
MOTOR SERVO |
| Dimennsions |
22x17.3x5.2cm
|
| Weight |
0.55kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1756-L61 is a ControlLogix controller. It has 2 MB user memory and 478 kb I/O memory available, with an optional non-volatile storage memory of 128 MB with the use of 1784-CF128 CompactFlash memory card. It is a chassis-based controller and can be placed in any available slot of the 1756 ControlLogix chassis. Compatible chassis for this controller are 1756-A4, 1756-A7, 1756-A10, 1756-A13, and the 1756-A17. It has an open-style type of enclosure and can support up to a maximum of 250 controller connections. It also has a built-in RS-232 serial communication port. Supported protocols of the RS232 port are DF1 full/half-duplex, ASCII, DF1 radio modem, Modbus via logic, and DH-485.
It has a maximum digital I/O of 128,000, a maximum analog I/O of 4,000, and a maximum total I/O of 128,000. Controller tasks of the 1756-L61 include 32 tasks, 100 programs per task, and event tasks: all event triggers. The 1756-L61 has various communication options, such as ControlNet, Data Highway Plus, EtherNet/IP, DeviceNet, SynchLink, Remote I/O, and third-party process and device networks. The current draw of the 1756-L61 controller is 1200 mA at 5.1V DC and 14 mA at 24V DC. Power dissipation is at 3.5 W and thermal dissipation is 11.9 BTU/hr. It also has a continuous isolation voltage of 30V and has been tested at 720V DC for 60 s. It has an operating temperature of 0 to 60 Degrees Celsius, a storage temperature of -40 to 85 Degrees Celsius, and a maximum surrounding air temperature of 60 Degrees Celsius. Relative humidity is between 5% to 95% (noncondensing) and its vibration is 2 g at 10 to 500 Hz, with operating and non-operating shocks of 30 g and 50 g respectively.
Our service

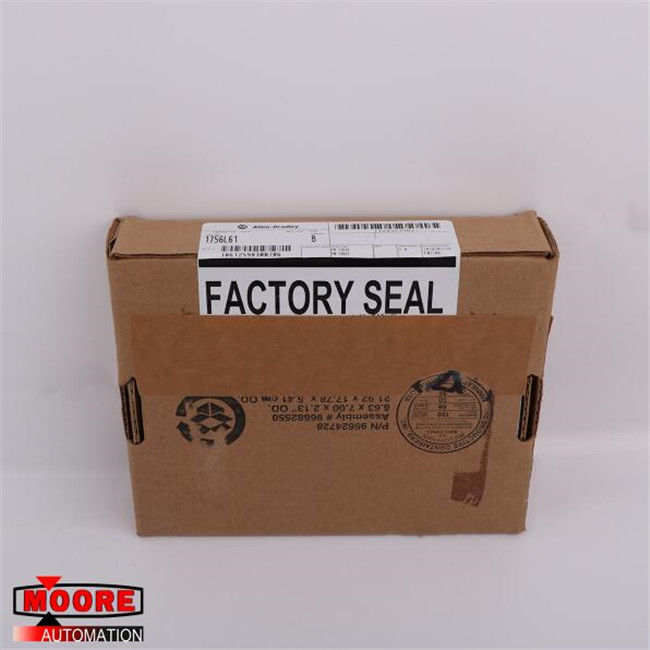

100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
