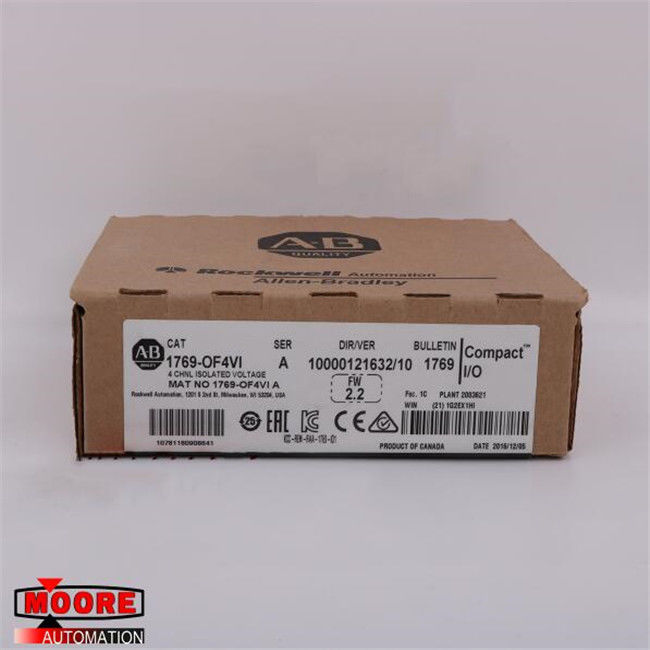

1769-OF4VI 1769OF4VI AB AB CompactLogix 4 Pt A/O Voltage Module
⇒ Click here for good price 1769-OF4VI
| Brand/Manufacturer |
AB/USA |
| Part Number |
1769-OF4VI
|
| Alternate Part Number |
1769-OF4VI |
| Description |
MOTOR SERVO |
| Dimennsions |
16x13x5.3cm
|
| Weight |
0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 769-OF4VI is a compact voltage output isolated module with four individually-isolated outputs. It has a voltage range between 0 to 10V, with a full-scale range of 0 to 10.5, and a 15bit 330 μV/bit resolution. It has a bus current of 165mA at 5V DC and dissipates 2.0 watts of heat. The 769-OF4VI has a 120ms maximum conversion rate and a 2.9ms limited voltage per current. The 769-OF4VI has a maximum output current load of 5mA at a resistive load range of less than or equal to 2 kΩ.
The 769-OF4VI compact voltage module has a capacitive load per output voltage of 1 μF, with no field calibration required. It has a drift accuracy margin of ±0.0086% FS per °C and an accuracy margin between ±0.5. The module error is around ±0.8% at an output ripple of ±0.05% @ 0 to 50 kHz. The 769-OF4VI is protected from short-circuiting and can sustain a maximum short-circuit current of 42mA. It has a power-up response time of less than 0.4ms and it can power down at less than 21ms.
The 769-OF4VI module has an operating voltage of 30V DC with IEC Class 2 reinforced insulation. It has an approximate weight of 0.60 lbs and has a dimension of 4.65 x 1.38 x 3.43 in. The 769-OF4VI compact voltage module has an 8-module power supply distance with a 22 by 14 AWG solid wire size and a replacement door kit.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
