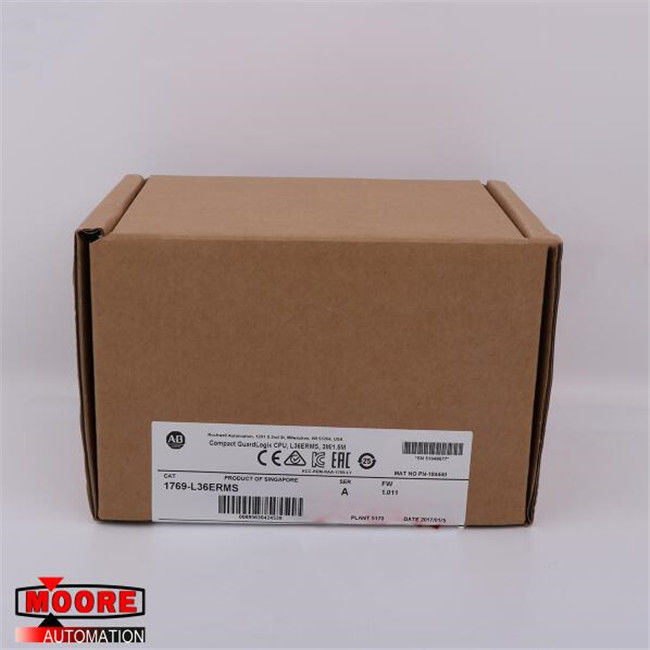

1769-L36ERMS 1769L36ERMS AB AB CompactLogix 5370 Controller

1769-L36ERMS 1769L36ERMS AB AB CompactLogix 5370 Controller

⇒ Click here for good price 1769-L36ERMS

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB/Rockwell Automation 1769-L36ERMS controller is a CompactLogix 5370 controller. It has an operating temperature rating of between 0 degrees Celsius and 60 degrees Celsius. When this controller is being stored, the manufacturer recommends a storage temperature ranging from -40 degrees Celsius to 85 degrees Celsius. The controller’s rated storage and operating ambient relative humidity range is between 5 and 95% without condensation. At a frequency of between 10 and 500 Hertz, the 1769-L36ERMS controller can accommodate a vibration of 5 G when in operation. Additionally, the controller has a rated operating shock of 20 G when it is mounted on a DIN rail and one of 30 G when mounted on a panel. However, when it is not in operation, the 1769-L36ERMS controller accommodates a shock rating of 30 G when it is mounted on a DIN rail and the rating is 40 G when it is mounted on a panel. For its electrostatic discharge immunity, the controller supports 6 kiloVolts of contact discharges and 8 kiloVolts of air discharges.

The AB/Rockwell Automation 1769-L36ERMS controller has an EFT/B immunity rating of +/- 3 kiloVolts at 5 kiloHertz on the communication ports and +/- 4 kiloVolts at a frequency of 5 kiloHertz on protective earth. For the surge transient immunity, the 1769-L36ERMS controller has a rating of +/- 2 kiloVolts line-earth on the communication ports. The 1769-L36ERMS controller, like other CompactLogix 5370 controllers, provides a scalable controller that enables it to be connected with a wide range of industrial applications. As a standard feature, controllers in the CompactLogix 5370 family, including the 1769-L36ERMS controller, have a single USB port and 2 Ethernet ports. Additionally, they have support for local expansion modules and the control of distributed and local I/O modules.

Our service

100% full New - Original Factory Seal

Warranty: 12 months

Package: Original packing with cartons

Delivery time: Shipped in 3 days after payment
