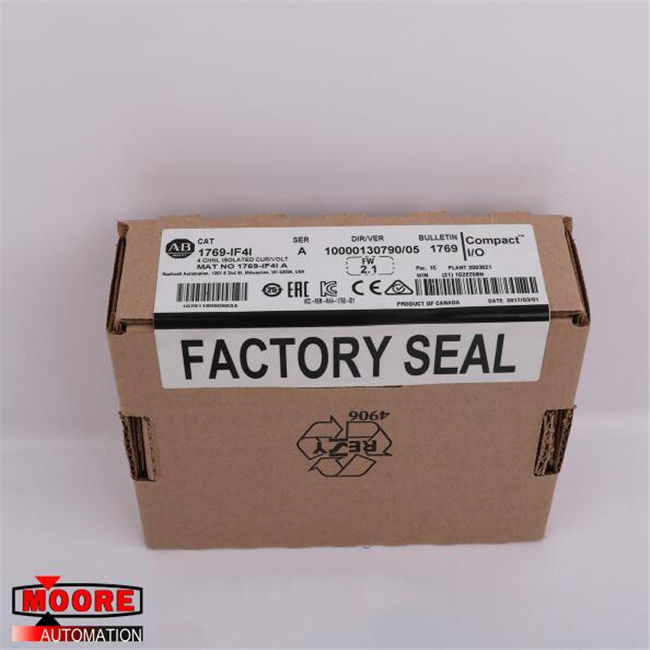

1769-IF4I 1769IF4I AB AB 1769 CompactLogix 5370 Controller
⇒ Click here for good price 1769-IF4I
| Brand/Manufacturer |
AB/USA |
| Part Number |
1769-IF4I
|
| Alternate Part Number |
1769-IF4I |
| Description |
MOTOR SERVO |
| Dimennsions |
16x13x5.3cm
|
| Weight |
0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1769-IF4I is a part of the 1769 CompactLogix 5370 Controller series. It is an Analog Current/Voltage Isolated Input Module with 4 differential analog input channels. It digitally stores and converts analog data for use by controllers like the MicroLogix 1500 controller and the CompactLogix controller. It has dimensions of 4.65 x 3.43 x 1.38 in. and a weight of 0.65 lbs. The 1769-IF4I has a Delta-Sigma converter and it is programmed with RSLogix 500 / 5000 programming software (Version 8.1 and above). The module must not be installed more than 8 modules away from the system power supply. It has a maximum heat dissipation of 3 Watts. For installation, it has Panel or DIN Rail mounting options and an open enclosure.
The 1769-IF4I module has various safety features and programming software, network, and information capabilities common to all the other Logix controllers. It thus allows for a common development environment with high performance and low cost. It has removable terminal blocks which provide greater user flexibility for installation and wiring. For communication with the controller, it uses the bus interface. The 1769-IF4I also receives 5 and 24V DC power through its bus interface.
The 1764-IF4I module has an LED to indicate fault status. It turns ON if a fault is found during normal channel operation or during the power cycle diagnostics. It is intended for use in clean, dry industrial environments with circuits that do not exceed Over Voltage Category II. For wiring, it is recommended to use Belden 8761 (shielded) or equivalent cable at the shortest possible length to lower impedance. The 1769-IF4I also performs channel diagnostics for configuration errors, and open circuit, over-range and under-range errors.
