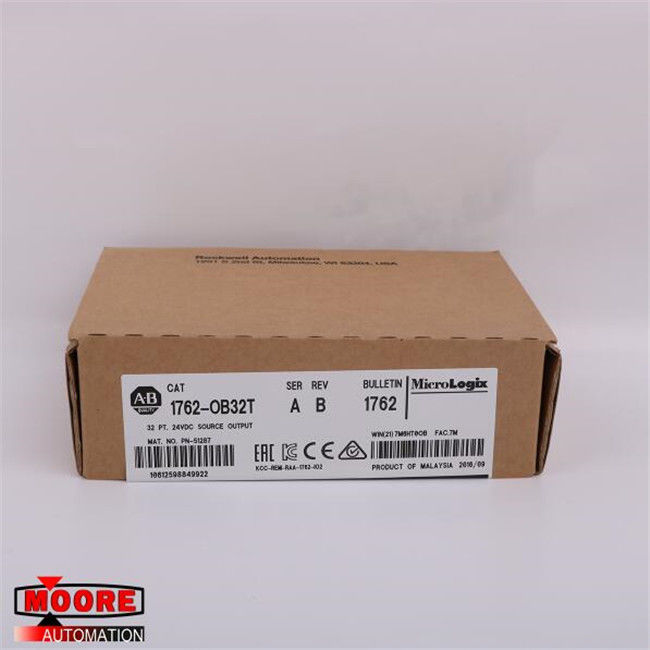

1762-OB32T 1762OB32T AB AB MicroLogix 32 Point D/O Module
⇒ Click here for good price 1762-OB32T
| Brand/Manufacturer |
AB /USA |
| Part Number |
1762-OB32T
|
| Alternate Part Number |
1762-OB32T |
| Description |
MOTOR SERVO |
| Dimennsions |
17x11x5.3cm
|
| Weight |
0.2kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1762-0B32T is a solid-state 24 Volts DC source output module with 32 outputs. The shipping weight of this module is 7.05 ounces. and its heat dissipation is 3.4 W at 26.4 Volts DC. The enclosure of the 1762-0B32T is an IP20. There are three wire sizes suitable for this module. Those are 22, 24, and 26 AWG solid or stranded copper wire rated at 194 degrees Fahrenheit. The range of operating voltage is between 10.2 and 26.4 Volts DC. The continuous current per point, common, and module are all different. At 60 degrees Celsius, those continuous currents are 0.5 Amps, 2 Amps, and 4 Amps. The maximum surge current of the 1762-0B32T is 2.0 Amps (repeatable every 2 s at 60 degrees Celsius (140 degrees Fahrenheit) for 10 milliseconds).
The 1762-0B32T is designed to be used in a Pollution Degree 2 industrial environment at altitudes as high as 6562 feet without derating. The 1762-0B32T must be mounted in an enclosure designed to prevent injury. The enclosure must have flame-retardant properties to minimize the spread of fire, complying with a flame spread rating of 5VA, V2, V1, V0 (or equivalent) if non-metallic. The interior of the 1762-0B32T’s enclosure is accessible only by a tool.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
