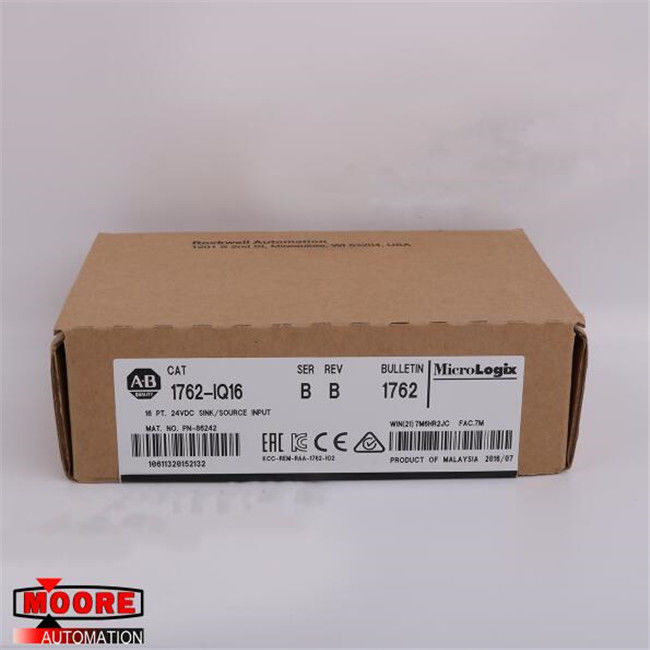

1762-IQ16 1762IQ16 AB AB MicroLogix 16 Point Digital Input Module

1762-IQ16 1762IQ16 AB AB MicroLogix 16 Point Digital Input Module

⇒ Click here for good price 1762-IQ16

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1762-IQ16 is a 16-point sink and source input module. It measures 90 x 87 x 40 millimeters, runs on 24 Volts DC input power at a 10 to 30 Volt DC operating voltage. Its maximum heat dissipation is 3.7 Watts. The 1762-IQ16 enhances the functionality of MicroLogix 1100, 1200, and 1400 controllers. It needs minimal space and it can be mounted on a DIN rail or a panel mount. The 1762-IQ16 module is a sinking and sourcing module that regulates the current flow between the input module and the connected device. The devices on the negative side of the module are sinking field devices and the ones on the positive side are sourcing field devices. The Source devices always provide current to the Sink devices. The 1762-IQ16 module has a single status LED that indicates power and helps identify the source of all the problems. The module communicates and receives 10, 24, and 30 Volts of DC power via the 1762 bus interface. For wiring the input terminal blocks, a finger-safe cover is included. The 1762-IQ16 uses bit positions 0 to 15 of word 0 for the input terminals. The operation details of the module must be configured for each channel after installation.

While troubleshooting, always keep a safe distance away from the equipment and always check for any changes in the program. The safety circuits should always be wired to the master relay in series. The 1762-IQ16 module should be installed in non-hazardous, dry, and clean environments with circuits that do not exceed Overvoltage Category II Standards. To avoid damaging the 1762-IQ16, take precautions to avoid electrostatic discharge and remove all power before performing any maintenance tasks. The 1762-IQ16 is an AB MicroLogix DC Input Module. The 1762-IQ16 is a 16-point sink/source input module with an input voltage rating of 24 Volts DC. This module has both DIN rail and Panel mounting options.
