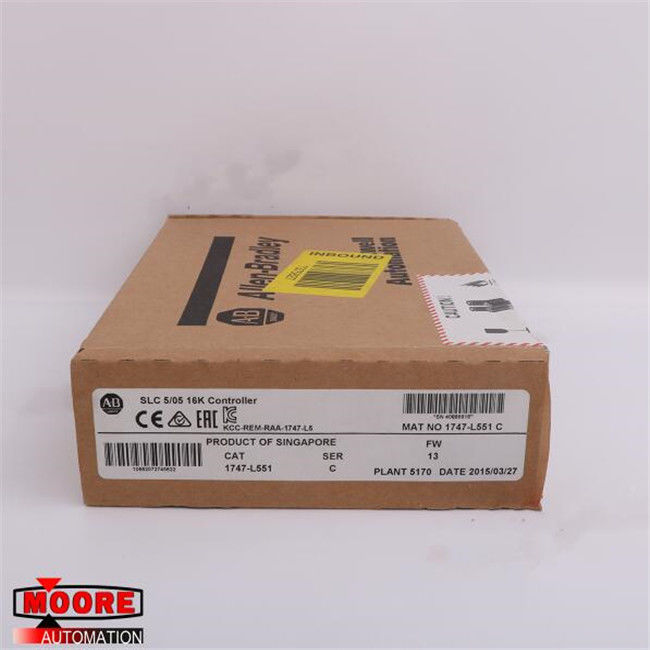

1747-L551 1747L551 AB AB Shigh-Performance Controller

1747-L551 1747L551 AB AB Shigh-Performance Controller

⇒ Click here for good price 1747-L551

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1747-L551 Processor Hardware is integrated with a program memory size of 16 KB. It is high-performance controller, capable of controlling up to 4096 input and output points. This module supports online and offline programming such as runtime editing. The AB 1747-L551 has channel-to-channel, remote I/O, and DeviceNet pass-thru features. This module also has a built-in real-time clock and calendar. This module comes with a Ethernet port for network connection and RS232 port for peer-to-peer communication. The RS-232 channel supports DF1 full duplex, DF1 half-duplex master and a DF1 radio modem. The integrated Ethernet port supports a built-in 10/100 Base-T Ethernet channel for supporting SNMP, BOOTP, extended messaging capabilities, and high-speed communication. For programming, it includes advanced math instructions and various additional instructions. It also includes support for indirect addressing. The SLC 505 has a typical Program Scan Time per Keyword of 0.9 milliseconds and typical I/O scan time of 0.225 milliseconds.

This module has a dielectric withstand of 150 Volts AC based on the UL 508, CSA C22.2 No. 142 Standards. The operating vibration of the 1747-L551 is 2.5G at 5 to 2000 Hertz. The non-operating vibration is 5G at 5 to 2000 Hertz. The isolation between the communication circuits of this module is around 500 Volts DC. The isolation between the backplane and the I/O of this module is 1500 Volts AC. Before installing and uninstalling I/O devices, disconnect the power from the controller and the other power sources that serve the I/O device. The operating temperature of the 1747-L551 is 32 to 140 degrees Fahrenheit, and the storage temperature is around -40 to 185 degrees Fahrenheit. The AB 1747-L551 has an operating shock of 30G (3 pulses, 11 milliseconds). The nonoperating shock is 50G (3 pulses, 11 milliseconds). The relative humidity is from 5-95% non-condensing. This module has a scan time typically around 0.9 milliseconds/K. Its LED light will indicate several different situations, including when the module is running, when the CPU experiences a fault, when the battery is low, an I/O is being forced, or when its Ethernet/RS-232 ports are active.
