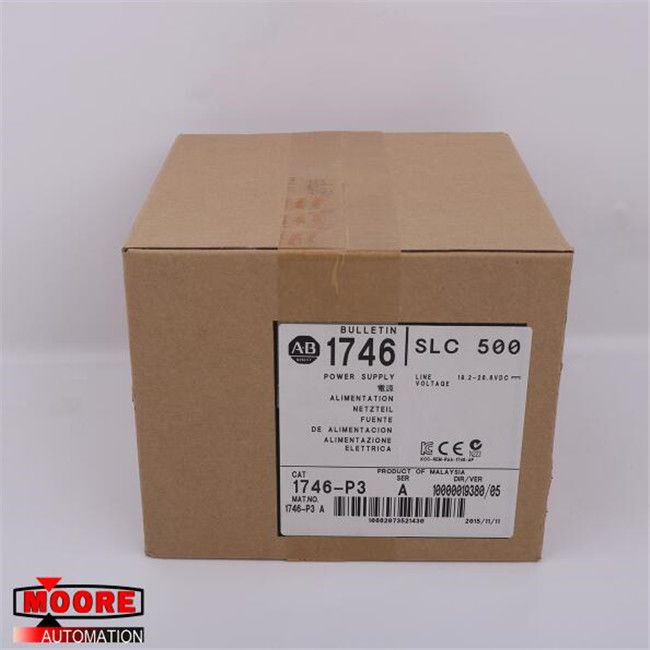

1746-P3 1746P3 AB AB SLC Rack Mounting Power Supply

1746-P3 1746P3 AB AB SLC Rack Mounting Power Supply

⇒ Click here for good price 1746-P3

Contact Us

Email: miya@mvme.cn (CLICK)

QQ: 2851195450

Tel: 86-18020776792(CLICK)

Skype:miyazheng520(CLICK)

Product Details

The AB 1746-P3 module is a rack mount power supply for SLC 500 programmable controllers. It is rated at 24 Volts DC and 3.6 Amps. Certifications held by the 1746-P3 include the CE, EN 50082-2, EN50081-2, and the C-Tick certifications. The range of input voltages for the 1746-P3 is from 19.2 to 28.8 Volts DC. The typical input power requirement of the module is 90 VA. The maximum inrush current is 20 Amps. The current capacity for the module is 3.6 Amps at 5 Volts DC and 0.87 Amps at 24 Volts DC. The fuse recommended for use with the 1746-P3 module is the AB 1746-F3 fuse (or an equivalent fuse including the BUSSMAN AGC 5 or the Nagasawa ULCS-61ML-5 fuse). There is no isolation between the backplane and input terminals. There is, however, a dielectric withstand between the chassis ground terminal and input terminals which is 600 Volts AC RMS for 1 second.

The recommended ambient temperature range for the 1746-P3 module to operate at is from 32 to 140 degrees Fahrenheit. The hold-up time for the CPU is 5 milliseconds at a full load and 1000 milliseconds at no load. The dimensions of the 1746-P3 are 139.7 x 79.2 x 144.8 millimeters. The module is designed for use at altitudes of up to 2000 meters without derating. It should be used in Pollution Degree 2 rated environments and in applications rated at Category II. Only a 1/8 inch flat head and a 1/4 inch Phillips head screwdriver are required for the installation of the module. To protect the module against ESD, it should be kept in static-shield packaging when it is not in use, the connector pins and backplane connector should not be touched and touching the circuit components on the module should be avoided too.
