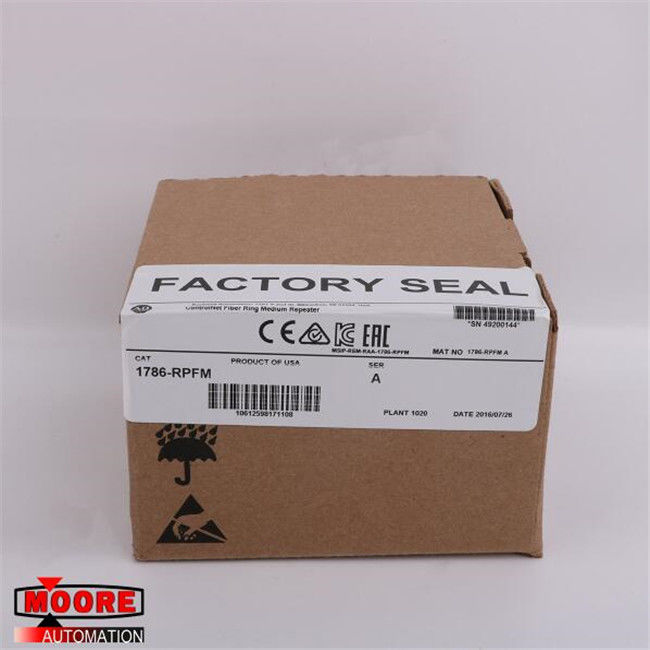

1786-RPFM 1786RPFM AB AB ControlNet Fiber Ring Medium Repeater
⇒ Click here for good price 1786-RPFM
| Brand/Manufacturer |
AB/USA |
| Part Number |
1786-RPFM
|
| Alternate Part Number |
1786-RPFM |
| Description |
MOTOR SERVO |
| Dimennsions |
13x13x8.7cm
|
| Weight |
0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1786-RPFM unit is a product of the Allen Bradley 1786 ControlNet Repeater series. This module is a repeater medium-distance fiber module that has a 0-3 km repeater distance and is used with 62.5/125 micron multimode OM1 fiber with 5 Volts of DC power, a current draw of 400 mA, an operating wavelength of 1300 nm, and a level of attenuation of 13.3 dB. Designed to solve medium distance applications, this unit just requires less than 3000 meters per segment between the two ControlNet Fiber repeaters; however the maximum length of the section depends upon the quality of fiber, a number of connectors, and a number of splices. When it comes to the installation of this repeater series, a trained specialist is recommended for this purpose as its installation requires a proper verification test. Moreover, this Allen Bradley 1786-RPFM unit should be mounted within a suitable system to prevent injuries. In addition, make sure that the interior of this enclosure is accessible by a tool, such as a screwdriver, so that no harm is done by the live parts.
This 1786-RPFM ControlNet unit is mainly used to create a star topology, ring topology, extend the length of the network, and for conversion of copper coaxial cable to fiber media. The Allen Bradley 1786-RPFM unit provides exceptional isolation between nodes and is also less susceptible to the noisy environment than other copper media. It is also used to power various repeater modules. They both come with a status indicator that is interpreted by the user to communicate the faulty conditions and to check if there are errors in the data or not.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
