| Place of Origin | USA |
| Brand Name | AB |
| Certification | CO.CQ |
| Model Number | 1769-OW16 |

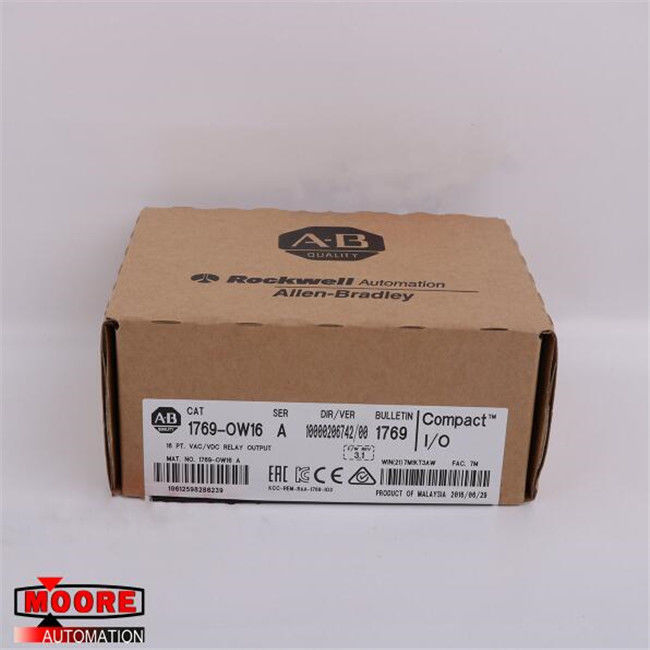

1769-OW16 1769OW16 AB AB CompactLogix 16 Pt D/O Relay Module
⇒ Click here for good price 1769-OW16
| Brand/Manufacturer | AB /USA |
| Part Number |
1769-OW16 |
| Alternate Part Number | 1769-OW16 |
| Description | MOTOR SERVO |
| Dimennsions |
16x13x7cm |
| Weight | 0.4kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1769-OW16 is a CompactLogix digital AC/DC relay contact I/O module. This output module has Sixteen (16) Normally Open contacts, with Eight (8) points per group. It is configured using the RSLogix500 / RSLogix 5000 and Studio 5000 Programming software.
The module’s contact ratings are 0.22 A at 125 Volts DC, 28VA, and 7.5 A at 240 Volts AC, 1800VA for make and 0.75 Amps at 240 Volts AC, 180VA for Break. Its operating voltage ranges are 5 to 265 Volts AC and 5 to 125 Volts DC. The module’s current draw is 180 mA at 24 Volts and 205 mA at 5.1 Volts. It also has a 20A maximum current per module and 2.5A maximum current per point. The maximum power dissipation of the 1769-OW16 module is 4.75 Watts, the maximum off-state leakage is 0 mA, and the minimum on-state current is 10 mA at 5 Volts DC. It has an operating temperature range of 0 to 60 degrees Celsius and a non-condensing relative humidity range of 5 to 95%.
The 1769-OW16 module has an operating shock of around 30G and while operating, it can withstand vibrations of around 2G. Note that this module has a delay of 10 milliseconds for both the on and off states. The 1769-OW16 provides flexibility and is compatible with various applications such as with a CompactLogix controller. Additionally, the 1769-OW16 can be used as an expansion I/O in a MicroLogix 1500 controller assembly and in an assembly with either a 1769-ADN DeviceNet or 1769-AENTR Ethernet adapter.
