1769-IQ16 1769IQ16 AB AB CompactLogix 16 Pt 24VDC D/I Module
⇒ Click here for good price 1769-IQ16
| Brand/Manufacturer |
AB/USA |
| Part Number |
1769-IQ16
|
| Alternate Part Number |
1769-IQ16 |
| Description |
MOTOR SERVO |
| Dimennsions |
16x13x5.3cm
|
| Weight |
0.25kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The 1769-IQ16 DC digital input module by AB is a DC digital input module with Sixteen (16) 24 Volts DC sinking and sourcing inputs. This module has Two (2) input groups with Eight (8) channels per group. It has an optimum voltage range of 10 to 30 Volts DC at 30 degrees Celsius (86 degrees Fahrenheit) and 10 to 26.4 Volts DC at 60 degrees Celsius (140 degrees Fahrenheit). It has 8 milliseconds input OFF/ON signal delay time and draws a 115mA current at 5.1 Volts DC. It has a maximum OFF state voltage and current rating of 5 Volts DC and 1.5mA respectively. It also has an ON rating of 10 Volts DC and 2mA. The 1769-IQ16 has a maximum surge current of 250mA and a nominal input impedance of 3 kW. It has an IEC Class 2 reinforced insulation type with an isolation voltage of 75 Volts DC tested at 1697 Volts DC for 1 second between inputs-to-BUS and group-to-group.
Its maximum heat dissipation is 3.55W (12.11 BTU per hour) in an open-style enclosure. It weighs approximately 270g (0.60 pounds), and dimensions of 118 x 35 x 87 millimeters (4.65 x 1.38 x 3.43 inches). The 1769-IQ16 supports panel mounting a DIN rail installation using a six pounds on an inch terminal screw. The 1769-IQ16 uses either the 1769-PA2, 1769-PB2, 1769-PA4, or the 1769-PB4, with an 8-module supply distance rating. It uses copper (Cu at 90 degrees Celsius (194 degrees Fahrenheit)) wire with a 22/14 AWG solid and a 22/16 AWG stranded wire size. It has an operational temperature range between 0 and 60 degrees Celsius (32 and140 degrees Fahrenheit) at 5 to 95% relative humidity range without condensation.
Our service

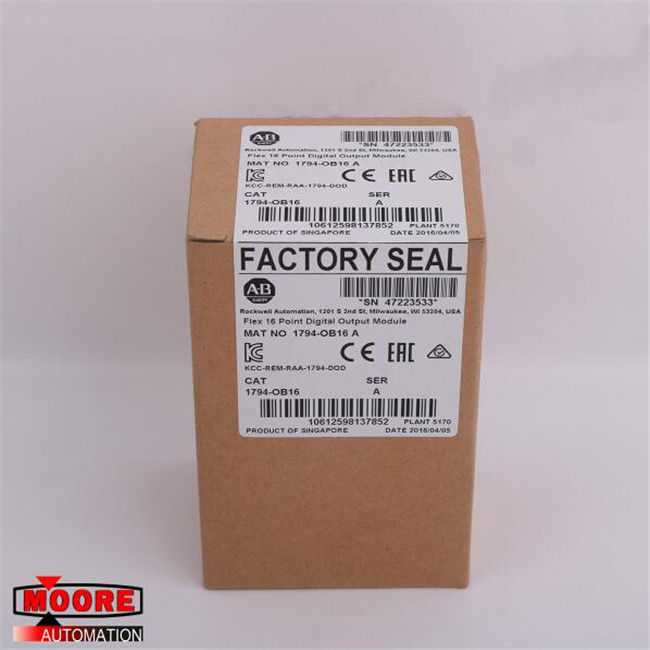

100% full New - Original Factory Seal
Warranty: 12 months
Package: Original packing with cartons
Delivery time: Shipped in 3 days after payment
