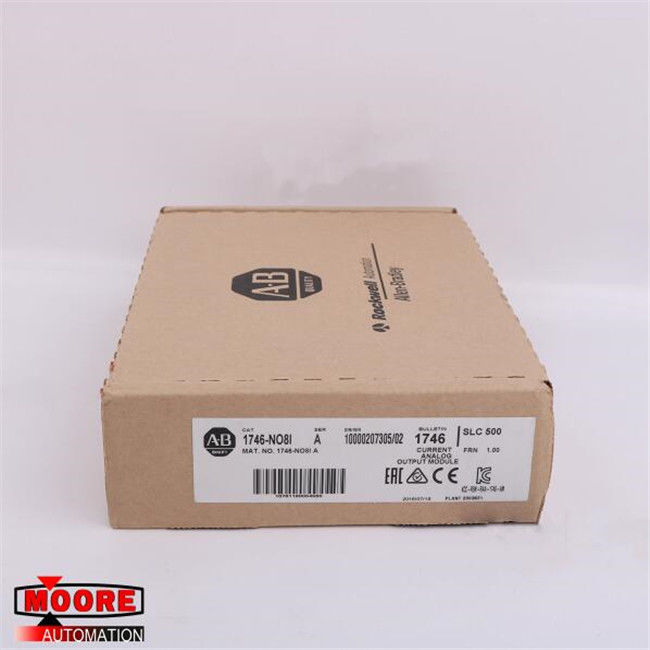

1746-NO8I 1746NO8I AB AB SLC 8 Point 20ma Output Module
⇒ Click here for good price 1746-NO8I
| Brand/Manufacturer |
AB /USA |
| Part Number |
1746-NO8I
|
| Alternate Part Number |
1746-NO8I |
| Description |
MOTOR SERVO |
| Dimennsions |
24.5x16.5x5.5cm
|
| Weight |
0.4kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1746-NO8I is an Analog Output module capable of producing Current signal ranging from 0 to 21 mA. This module belongs to the SLC 500 controller platform that features Two (2) system varieties - modular style and fixed hardware.
The Fixed hardware is equivalent to compact Programmable Logic Controller (PLC) ideal for use in small applications with limited expansion capability. The modular style hardware is a fully modular, customizable and scalable hardware ideal for use in medium to large applications. The 1746-NO8I are both compatible to these SLC 500 varieties. Especially for installation to a modular style hardware, the 1746-NO8I may be installed to the local or expansion or remote I/O rack. In a local chassis, the module can be installed to any slot except slot 0 as it reserved for the CPU. For expansion rack, the 1746-NO8I is compatible to any slot while if used with a remote I/O rack, the 1746-NO8I cannot be installed in slot 0 as it is reserve for the SLC communication adapter such as RIO, DH+ and Ethernet. Additionally, major considerations when installing this module are ambient temperature and exposure to electrical noise. This module generates a significant amount of heat which makes it ideal to install the module to the chassis nearest to the bottom of the enclosure this is for the reason that cool air goes down and climate control components are commonly installed at the bottom. To minimize electrical noise, install the module away from the system power supply and away from AC line and high DC voltage levels.
