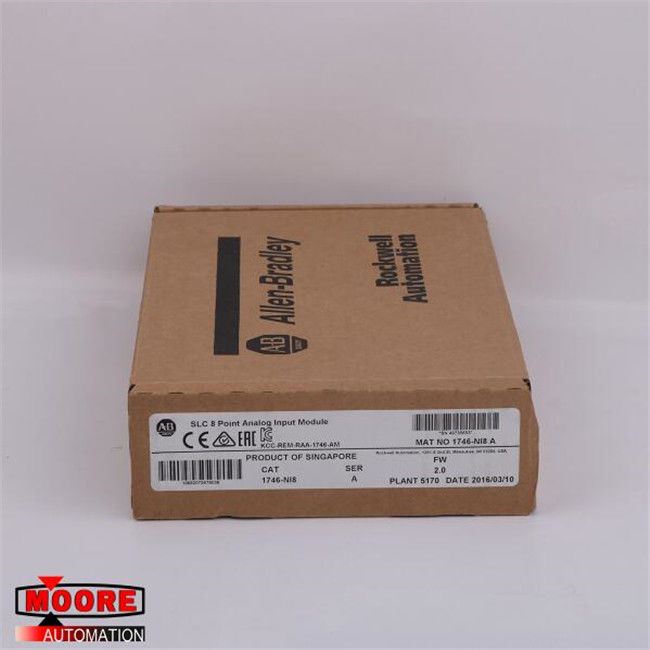

1746-NI8 1746NI8 AB AB SLC 8 Point Analog Input Module
⇒ Click here for good price 1746-NI8
| Brand/Manufacturer |
AB /USA |
| Part Number |
1746-NI8
|
| Alternate Part Number |
1746-NI8 |
| Description |
MOTOR SERVO |
| Dimennsions |
24.5x16.5x5.5cm
|
| Weight |
0.4kg |
Contact Us
Email: miya@mvme.cn (CLICK)
QQ: 2851195450
Tel: 86-18020776792(CLICK)
Skype:miyazheng520(CLICK)
Product Details
The AB 1746-NI8 is an analog single-slot I/O module for the SLC 500 system. It is a high-resolution analog input module that is configurable with RSLogix 500 programming software. It is suitable for time-sensitive applications that require fast analog signal conversion and high accuracy. The 1746-NI8 module has an 8-Channel input with an isolated backplane. Its backplane current consumption is 200mA and 100mA at 5 Volts DC and 24 Volts DC respectively. It has a maximum backplane power consumption of 1 Watt at 5 Volts DC and 2.4 Watts at 24 Volts DC. The 1746-NI8 can be installed in any I/O slot, except Slot 0 of the SLC 500 I/O chassis. Input signal data is converted to digital data via successive approximation conversion. The 1746-NI8 module uses programmable filter frequencies with a low-pass digital filter for input filtering. It performs continuous autocalibration and has an isolation voltage of 750 Volts DC and 530 Volts AC, tested for 60 seconds. It has a common-mode voltage ranging from -10 to 10 Volts with a maximum of 15 Volts between any two terminals.
The 1746-NI8 module comes with a removable terminal block of 18 positions. For wiring, the Belden 8761 or a similar cable must be used with one or two 14 AWG wires per terminal. The cable has a maximum loop impedance of 40 Ohms at the voltage source and 250 Ohms at the current source. For troubleshooting and diagnostics, it has 9 green LED status indicators. The 8 channels have one indicator each to display the input status and one each for displaying the module status. The 1746-NI8 has a Division 2 hazardous environment standard with an operating temperature of 0 to 60 degrees Celsius.
Why choose us
1. We will provie you the product info and picuture
2.Large stock, fast delivery
3.Competitive prices and immdiate quotation
4.Professional service,professional technical support
5. Warranty time is one year.
6. Strict test machine before shipment.
7. We could help you to get any components which is difficult to get
