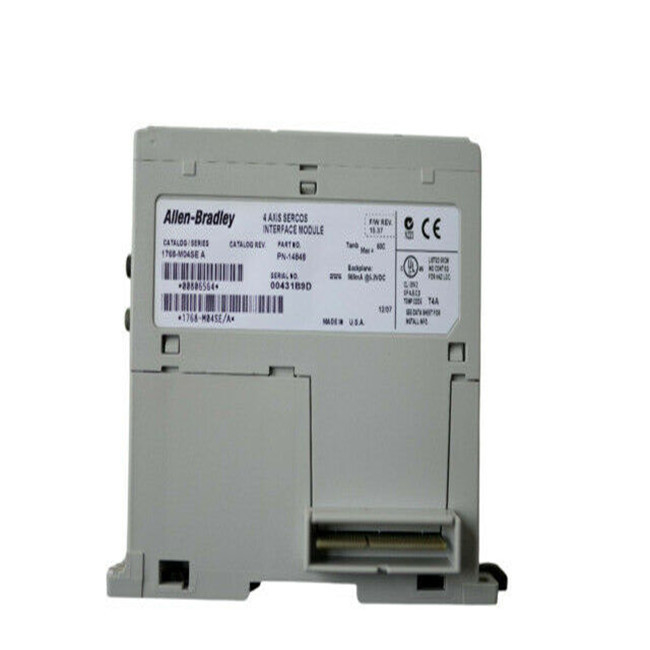

1768-MO4SE AB CompactLogix SERCOS Interface module
G Guarantee
◇ The AB 1768-M04SE is a CompactLogix SERCOS Interface module.
This interface module integrates motion capability by allowing integration and
control of up to Four (4) Kinetix drives. This module is compatible for use with
1768-L43 and 1768-L45 CompactLogix controllers.
◇ The AB 1768-M04SE SERCOS interface module supports the position
or velocity drive control modes. It uses a fiber-optic network and the 2090-SCEPxx-0
non-jacketed, polyvinyl chloride 2090-SCNPxx-0 nylon jacket, and the chlorinated
polyethylene 2090-SCVPxx-0 standard jacket cables to connect to drives.
◇ The module can be mounted onto a DIN rail or to a panel. Its outer dimensions
are 132 millimeters x 57 millimeters x 105 millimeters (5.2 inches x 2.23 inches x
4.14 inches). The total weight of the 1768-M04SE SERCOS interface module is
0.2 kilograms.
| Brand | AB |
| Power Dissipation | 5.04 W |
| Product Type: | SERCOS Interface Module |
| Supported No. of Drives: | Up to Four (4) drives |
| AB Drives compatibility: | Kinetix 2000, Kinetix 6000, Kinetix 7000, and Ultra 3000 SERCOS servo drives. |
| Connections consumed: | Three (3) |
| SERCOS Class | Class B (Position or Velocity) |
| SERCOS Data Rate | 4 M or 8 M |
| SERCOS Operating Cycle | 4 M Data Rate and up to 2 drives — 0.5 ms Cycle Time; 4M Data Rate and up to 4 drives — 1 ms Cycle Time; 8 M Data Rate and up to 4 drives — 0.5 ms Cycle Time |
| Fiber Optic Connector | F-SMA standard screw-type connector |
| Fiber Optic Core Diameter | Plastic cable — 980 µm ± 60 µm; Glass cable — 200 µm ± 4 µm |
| Fiber Optic Operating Temperature | Plastic cable — -55…85 °C; Glass cable — -20…85 °C |
| Fiber Optic Bend Radius | Plastic cable without a jacket — 25 mm (0.98 in.); Plastic cable with a standard jacket — 25 mm (0.98 in.); Plastic cable with a nylon jacket — 40 mm (1.6 in.); Glass cable — 30 mm (1.2 in.) |
