1336F-MCB-SP1K AB/Rockwell Automation
drive control board
Product Information

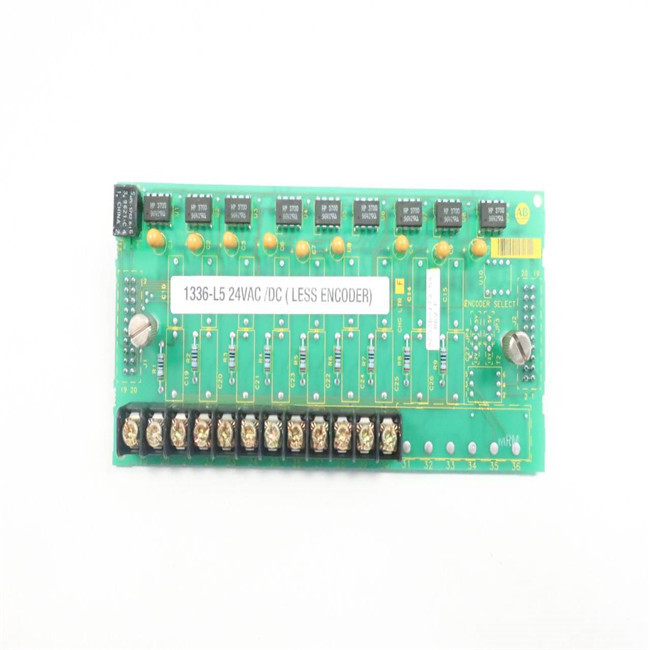

◆ The 1336-L5 is a Control Interface option card that is part of the 1336 Plus
Adjustable Frequency AC Drive by AB. It is specifically compatible for
use with the 1336 Plus, 1336 Force, and 1336 Impact, drives specifically, Frame
A-H drives except Frame C drives with 25 HP and 30 HP power rating. This control
interface board is mounted at the bottom of the main control board, sitting atop the
TB2 terminal strip.
◆ The 1366-L5 has Twelve (12) screw-type terminals that are designed to be terminated
with wire sizes 2.1 and 0.30 mm2 (14 and 22 AWG) copper wires. Tighten connections
at Torque of 0.90-1.13 N-m (8-10 lb.-in.). Terminal 19 and 20 are intended for Start /
Stop functions only with terminal 19 programmable to accept Status, Run, Forward,
and Start input while terminal 20 is configurable to Stop / Fault Reset signals.
◆ The 1336-L5 can also be used for local control, which gives users exclusive control
of the drive logic, and it also helps control the Fwd/Reverse function, which controls
reverse and forward direction operation.
◆ This interface board supports 2-wire and 3wire control wiring configurations. Other
commands that can be initiated via the control interface board are Acceleration,
Deceleration, Sync, and Traverse.
Our Advantage
★ lower your support costs
★ Provide on-going availability of automation replacement parts
★ Quantity available: 1
★ Warranty: 12 months.
★ Lead time: 1-2 working days.
★ Terms of payment:T/T
★ Courier partners: DHL, UPS, TNT, FedEx and EMS.
