| Place of Origin: | USA |
| Brand Name: | Allen Bradley |
| Certification: | CO.CQ |
| Model Number: | 1785-L20C/E |
| Product Description | |
|

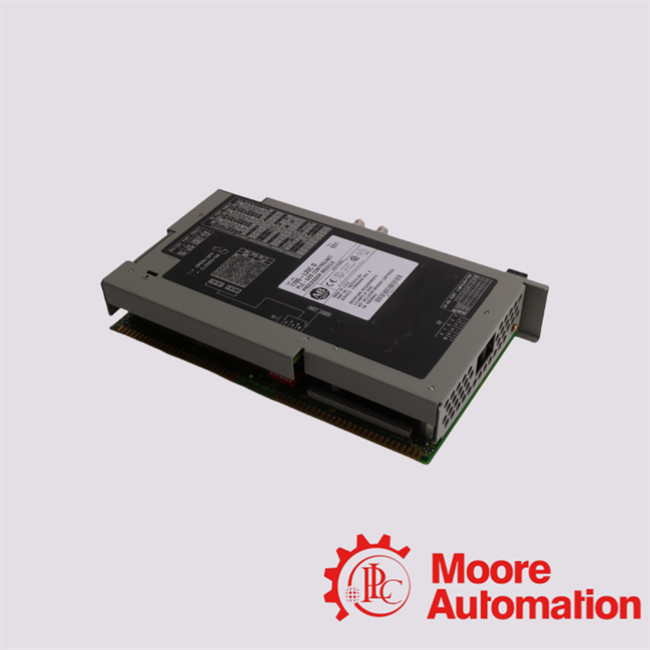

The 1785-L20C processor module is an industrial ControlNet processor module from Allen-Bradley/Rockwell Automation. It has been designed and manufactured as part of the Allen-Bradley PLC 5 controller series. The 1785-L20C ControlNet processor module is one of the key components in a complete PLC 5 control system. It supports battery backup and it is made to be installed in an I/O chassis. The 1785-L20C ControlNet processor module supports up to 512 analog I/O or up to 512 I/O of any kind.
|
|
| More Technical Data | |
| Program Scan Time |
Typical 2 ms/Kword, Bit Logic 0.5 ms/Kword |
| Max Total I/O | 512 (any mix) or 512 in + 512 out (complementary) |
| Max MCPs | 16 |
| Max Analog I/O | 512 |
| I/O Scan Time Per Rack | 10 ms at 57.6 kbits/s, 7 ms at 115.2 kbits/s, 3 ms at 230.4 mbits/s |
| Frequently Asked Questions | |
|
What is the Allen-Bradley 1785-L20C? The 1785-L20C is a PLC-5/20C ControlNet Processor that provides control and communication capabilities in industrial automation systems. It features a 16K memory, supports up to 512 I/O points (in any configuration of inputs and outputs), and operates on the ControlNet network for high-speed communication.
What is the maximum I/O capacity of the 1785-L20C? The 1785-L20C can handle a maximum total I/O of 512 points, which can be configured as any combination of inputs and outputs, or alternatively, as 512 input points and 512 output points in a complimentary configuration.
What is the program scan time for the 1785-L20C? The program scan time for the 1785-L20C is 0.5 ms per K word for bit logic operations and 2 ms per K word for typical program execution, offering fast and efficient processing. |
|
