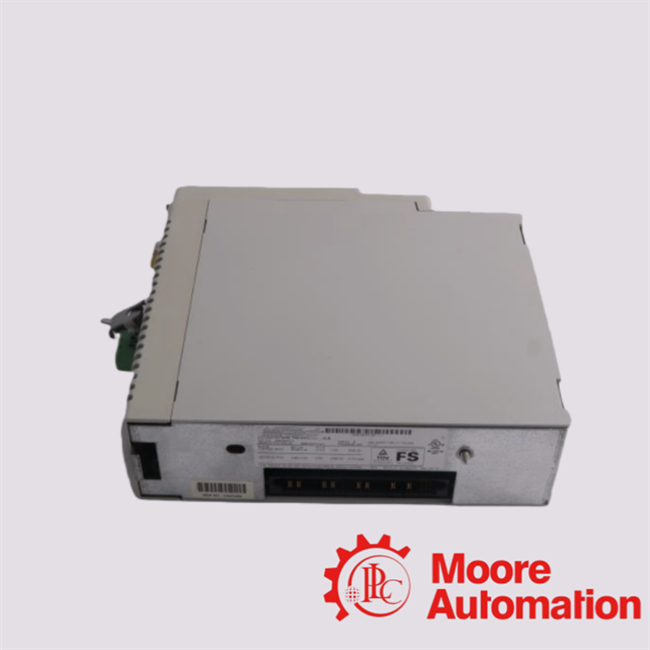

2094-BM02-M Allen Bradley modular multi-axis servo drive
Specification
|
Product Description
|
|
The Allen-Bradley 2094-BM02-M is part of the Bulletin 2094 series of modular multi-axis servo drives (specifically the Kinetix 6200/6500 family)
designed for integrated motion control in industrial automation systems. It is an Axis Module (power/inverter module) that ties
into the modular multi-axis architecture—allowing designers to build systems where multiple axes
share the same DC bus/inverter modules and control modules.
|
| More Technical Data |
| Input Voltage |
460 V AC, 50/60 Hz. |
| Inverter (output) current rating |
15 A at 460 V input. |
| Rated power (wattage) |
~6.6 kW. |
| Operating temperature |
one listing shows 32-122 °F (0-50 °C). |
| Frequently Asked Questions |
|
Q1: What does the “BM02-M” designation mean?
A1: The “BM” indicates a certain axis module in the Bulletin 2094 modular drive family. The “02” typically indicates the size / current rating (in this case 15 A inverter rating).
The “-M” suffix denotes that this is the modular version aligned with the Kinetix 6200/6500 family (versus “-S” which might be the earlier Kinetix 6000
version). For example, 2094-BM02-S is the older Kinetix 6000 axis module at 15 A.
Q2: Is this module compatible with Kinetix 6000 drives?
A2: Yes, the Kinetix 6200/6500 modular drives are designed with migration compatibility in mind. However, while mechanical and wiring compatibility
might be similar, you should verify the specific module, bus architecture, communications
interface and firmware compatibility.
Q3: What communications interface is supported?
A3: The documentation suggests that the modular drive architecture supports SERCOS or EtherNet/IP depending on the system.
For example, the Kinetix 6000 supports SERCOS III. For the 2094-BM02-M in the Kinetix 6200/6500 family,
you should check the associated control module and bus architecture
for the exact interface in your system.
Q4: What is the replacement product if this is discontinued?
A4: According to the Rockwell Automation site, this module (Bulletin 2094-BM02-M) is End-of-Life
(EOL) as of December 31, 2025. The replacement
category is 2198-D032-ERS3.
|
