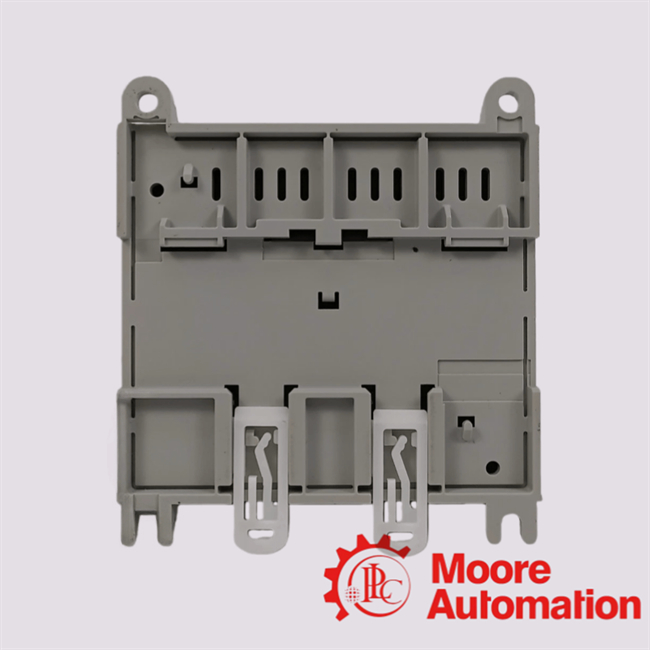

2080-LC20-20QWB Allen Bradley control module
Specification
|
Product Description
|
|
The 2080‑LC20‑20QWB is a compact, full‑featured programmable logic controller (PLC) from the Allen Bradley Micro820 family (Bulletin 2080 series).Designed
for small‑machine control, remote automation, or standalone applications requiring Ethernet/IP, serial ports, and data logging/recipe features.
It provides 20 I/O points onboard (12 inputs + 8 outputs) in this specific model variant, with embedded analog and configurable
I/O. the 2080‑LC20‑20QWB is a compact PLC controller offering a mix of digital + analog I/O, communications,
and expansion capability — suitable for many industrial control
tasks where space, cost and flexibility matter.
|
| More Technical Data |
| I/O & Configuration |
Digital Inputs: 12 points, 24 V DC type. |
| Communication & Features |
Serial port: RS‑232/RS‑485 non‑isolated serial interface. |
| Electrical & Environmental |
Protocol support: Built‑in support for EtherNet/IP. Also Modbus/TCP/RTU via Ethernet/serial in many cases. |
Additional Notes
|
When choosing variants, note there are other suffixes (e.g., QBB, AWB) that differ in output type (relay vs transistor) and I/O mix. |
| Frequently Asked Questions |
|
Q1: What types of outputs does this controller support?
A1: In the 2080‑LC20‑20QWB variant, the outputs are relay type, meaning they can switch AC or DC loads (within relay specs) rather than being transistor-style DC outputs.
If you need source or sink 24 V DC transistor outputs, look for other suffix variants (e.g., QBB, AWB) of the Micro820 family.
Q2: Can this controller communicate over Ethernet and serial?
A2: Yes — this model includes an embedded Ethernet port (EtherNet/IP) and a non‑isolated serial interface (RS‑232/RS‑485).
This makes it suitable for networked control, remote I/O, HMIs, or SCADA. Some forum discussion confirms
users leveraging Modbus RTU/TCP over the serial/ethernet ports.
Q3: What kind of analog I/O support is there?
A3: The 2080‑LC20‑20QWB provides 4 configurable analog input channels (voltage‑type) and 1 analog output
channel (0‑10V DC) in this variant. These analog channels allow you to measure/process analog
sensors and output analog signals, which is useful
for mixed signal control.
|
