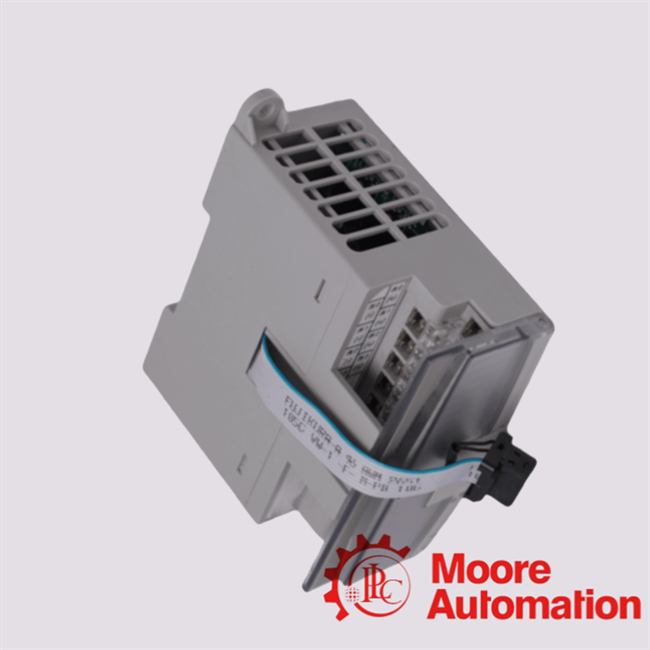

2080-IF4 Allen Bradley PLC I/O Module
Specification
|
Product Description
|
|
The Allen‑Bradley 2080‑IF4 is a plug‑in analog input module designed for use with the Micro800 family of controllers (e.g., Micro820, Micro830, Micro850, Micro870)
from Allen‑Bradley/Rockwell Automation.It provides 4 analog input channels (voltage or current) for analog‑signal monitoring in a
compact plug‑in module.The module is non‑isolated (channels share reference, and there is no isolation between input group and
bus) — meaning care must be taken in wiring and grounding.if you have a Micro800 controller and
you need to monitor up to 4 analog signals (voltage or current), the 2080‑IF4 is a viable and compact
option—just be aware of its non‑isolated nature and wiring/grounding
considerations.
|
| More Technical Data |
| Number of analog inputs |
4 |
| Update time |
Approximately 180 ms per enabled channel. |
| Operating ambient temperature |
‑20 °C to +65 °C (‑4 °F to 149 °F). |
Vibration/shock
|
Vibration according to IEC 60068‑2‑6 (2 G @ 10‑500 Hz); shock per IEC‑60068‑2‑27. |
| Frequently Asked Questions |
|
Q1: Can I use this for safety applications / SIL rated systems?
A1: No — the datasheet and specifications indicate that the module is not suitable for safety functions, and there is no SIL
rating according to IEC 61508.
Q2: What is the accuracy of the module?
A2: At 25 °C: ±1 % full scale for voltage inputs; ±1 % full scale for current inputs. Over the full‑temperature range: ±1.5 %
(voltage) or ±2.0 % (current). Non‑linearity is ±0.1 % full
scale and repeatability ±0.1 %.
Q3: Are there wiring examples available?
A3: Yes — Rockwell Automation provides wiring diagrams and examples for the 2080‑IF4 module (2‑wire vs
4‑wire current input, single ended voltage input). For example: “Wiring examples for
2080‑IF4 module” in the Rockwell support site.
Q4: What are the environmental and mechanical specifications I should check?
A4: Operating: ‑20 °C to +65 °C. Storage: ‑40 °C to +85 °C. Humidity up to 95 % non‑condensing.
Vibration: 2 G @ 10‑500 Hz. Shock: 25 g (DIN rail mount non‑
operating). Terminal screw torque ~0.22‑0.25 Nm.
Recommended cable length ~10 m. These specs
ensure reliable operation in industrial
environments.
|
