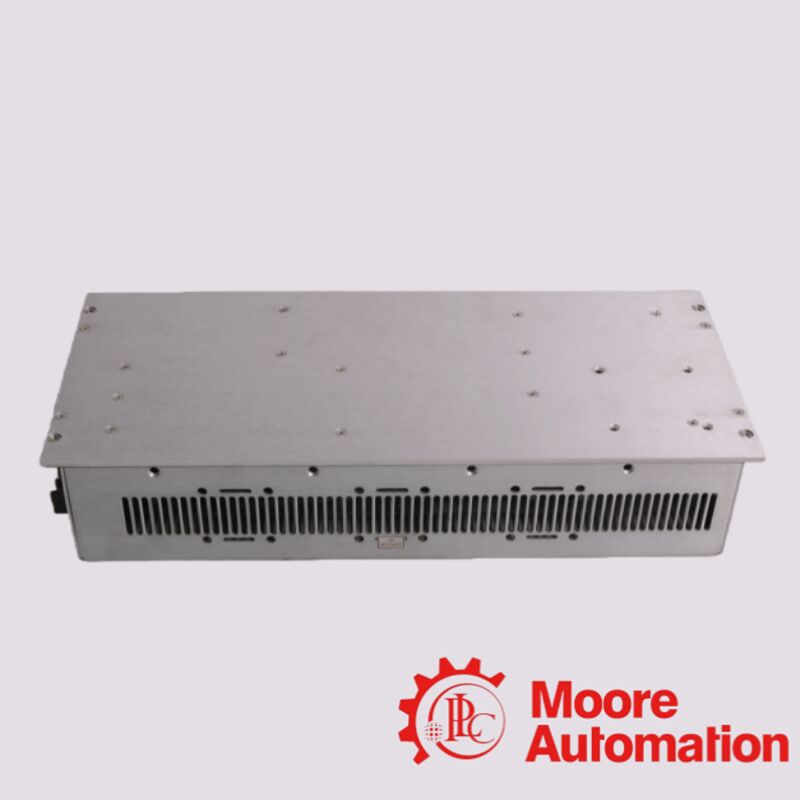

80026-088-01-R Allen Bradley SWITCHING POWER SUPPLY MODULE
Specification
|
Product Description
|
|
The 80026‑088‑01‑R is a switching power supply module made by Allen‑Bradley / Rockwell Automation. It is used in industrial automation systems. In particular, one vendor
describes it as part of the PowerFlex 7000 medium-voltage drive family, supplying DC power to the control cards and internal electronics.This module is
AC-to-DC (i.e., accepts AC input and provides regulated DC output).According to a supplier, its rated output power is 300 W.The module provides
56 VDC output according to several sources.It appears to support multiple outputs (or multiple voltage rails) in some descriptions, but this is
not entirely consistent across sources — see “Technical Data” below.
|
| More Technical Data |
| Input voltage |
~120–240 VAC (from Innoplcsync)
Another vendor says 200–240 VAC, 50/60 Hz. |
| Output voltage |
56 VDC according to multiple sources.
However, there are conflicting listings: some mention 5 V, 12 V, 24 V outputs. |
| Operating temperature |
According to a vendor: –20 °C to +70 °C.
Another says –20 °C to +50 °C for a similar module. |
| Frequently Asked Questions |
|
Q1: What is the primary use case for the 80026‑088‑01‑R?
A: It’s primarily used to provide DC power (56 VDC) in industrial control systems, especially within PowerFlex 7000 drives, to feed control electronics.
Q2: Is the output really 56 V? I saw another spec listing 24 V or 5 V.
A: There is some discrepancy in public vendor listings. The most reliable sources (e.g., 6G Controls, Radwell) say 56 VDC. The mention
of 5 V, 12 V, and 24 V in some places may be an error or confusion with a different variant. Always verify with
datasheet / Rockwell documentation before using it.
Q3: What input voltage range does this power supply support?
A: Typical input is 120‑240 VAC according to several suppliers. Some listings say 200–240 V AC.
Q4: How much current can it provide?
A: According to 6G Controls, it can provide up to 13 A on its output.
|
