Product Description

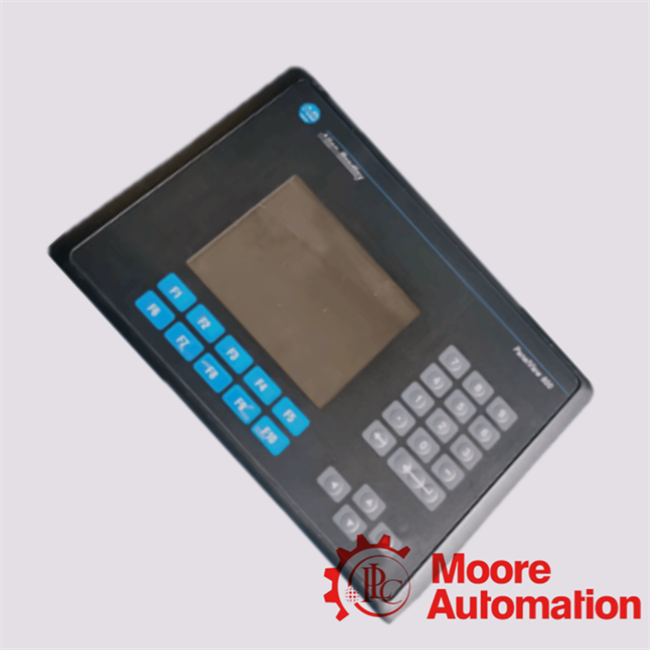

2711-K6C2L1 Allen-Bradley PanelView 600 is a compact industrial Human-Machine Interface (HMI) terminal from Rockwell Automation’s PanelView Standard 600 series. It is designed to provide operators with a reliable graphical interface for monitoring and controlling PLC-driven industrial processes.This model integrates a color display screen, keypad-based input system, and DH-485 communication protocol, enabling efficient interaction with legacy Allen-Bradley PLC systems in manufacturing and process automation environments.The 2711-K6C2L1 PanelView 600 is widely used in industrial control cabinets where robust, cost-effective, and deterministic operator visualization is required.

❓ 1. How does the 2711-K6C2L1 Allen-Bradley PanelView 600 HMI terminal execute real-time human–machine interaction within legacy DH-485-based automation architectures?

The 2711-K6C2L1 PanelView 600 facilitates bidirectional data exchange between operator inputs and PLC-controlled process variables, enabling deterministic visualization and command execution over the DH-485 communication network in legacy Allen-Bradley control systems.

❓ 2. What display engineering principles define the visual rendering performance of the 2711-K6C2L1 PanelView 600 color LCD interface module?

The 2711-K6C2L1 PanelView 600 utilizes a 5.7-inch TFT LCD display system with pixel-matrix addressing architecture, enabling structured rendering of industrial graphical objects, process indicators, and alarm states within constrained embedded HMI environments.

❓ 3. In what manner does the keypad-based input matrix of the 2711-K6C2L1 PanelView 600 operator interface ensure deterministic human input acquisition under industrial conditions?

The 2711-K6C2L1 PanelView 600 employs a sealed membrane keypad with function-key mapping (F1–F10), enabling high-reliability tactile input acquisition that remains stable under glove operation, vibration exposure, and contaminant-prone environments.

❓ 4. How does the DH-485 communication protocol implementation in the 2711-K6C2L1 PanelView 600 HMI terminal ensure deterministic PLC interoperability?

The 2711-K6C2L1 PanelView 600 integrates a DH-485 serial communication stack optimized for cyclic polling and token-based network arbitration, ensuring synchronized data exchange with Allen-Bradley SLC 500 and PLC-5 controller architectures.

❓ 5. What memory segmentation architecture governs application execution within the 2711-K6C2L1 PanelView 600 runtime environment?

The 2711-K6C2L1 PanelView 600 utilizes a constrained embedded memory model with segregated application storage and runtime execution space, enabling deterministic execution of HMI screens, alarm buffers, and tag mapping structures within limited non-volatile memory resources.
