Product Description

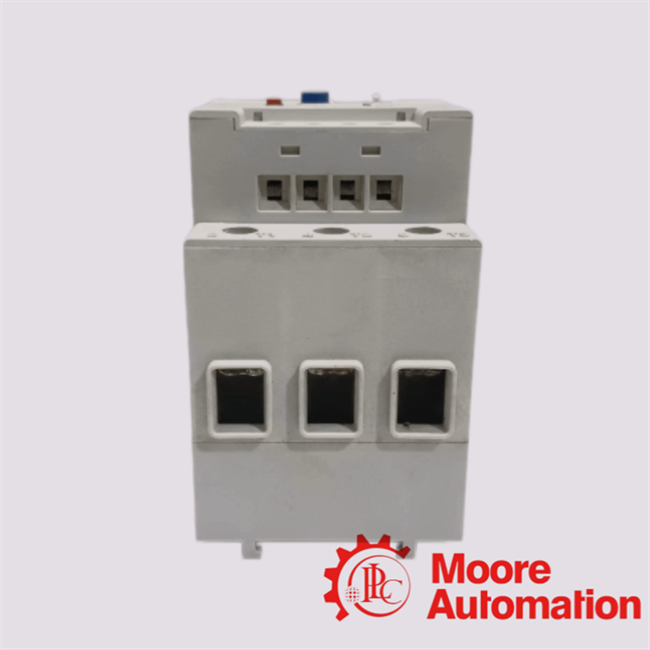

The Allen-Bradley 193-EEGE is a high-precision IEC-rated electronic overload relay designed for advanced three-phase motor protection in industrial control systems. It belongs to the Bulletin 193 E1 Plus series, engineered to provide reliable thermal-magnetic motor protection using solid-state sensing technology instead of traditional bimetallic elements.This device is specifically developed for motor starter coordination with IEC contactors, offering accurate current monitoring, phase loss protection, and configurable trip characteristics for industrial automation environments.

❓ 1. How does the 193-EEGE Allen-Bradley electronic overload relay implement solid-state thermal modeling for three-phase motor protection under IEC coordination schemes?

The 193-EEGE overload relay employs an embedded electronic thermal simulation algorithm that continuously reconstructs motor heating characteristics based on real-time current measurement, enabling accurate thermal accumulation modeling for IEC motor protection coordination.

❓ 2. What metrological principles govern the current-sensing architecture of the 193-EEGE Allen-Bradley overload relay in dynamic load environments?

The 193-EEGE overload relay utilizes integrated current transformer (CT) sensing technology to perform real-time phase current acquisition, ensuring precise analog-to-digital conversion for motor load evaluation under fluctuating industrial operating conditions.

❓ 3. How does the trip-class configurability of the 193-EEGE Allen-Bradley IEC overload relay influence motor protection selectivity in time-current coordination systems?

The 193-EEGE overload relay supports adjustable trip classes (e.g., Class 10, 20, 30), enabling engineered time-current discrimination that aligns motor protection response with mechanical inertia and load acceleration profiles.

❓ 4. In what manner does the 193-EEGE Allen-Bradley electronic overload relay detect and mitigate phase-loss and phase-imbalance conditions?

The 193-EEGE overload relay continuously compares phase current symmetry across all three phases, and upon detection of asymmetrical current distribution or single-phasing conditions, it initiates a controlled trip sequence to prevent motor thermal damage.

❓ 5. How does the self-powered operational design of the 193-EEGE Allen-Bradley overload relay enhance system integration efficiency in IEC motor starters?

The 193-EEGE overload relay derives its operating energy directly from line current via internal CTs, eliminating the need for auxiliary control power and simplifying integration into IEC contactor-based motor starter assemblies.
