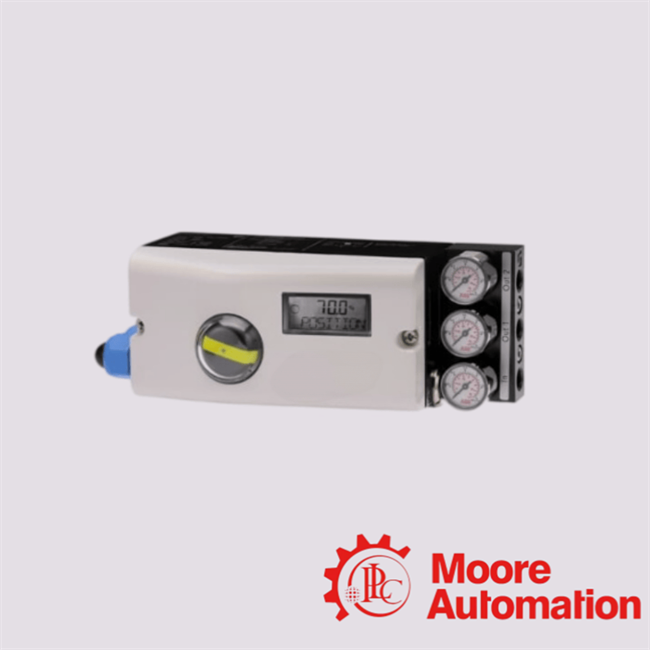

V18345-2010421001 ABB TZIDC Digital Positioner Double Acting Fail Safe with Analog Feedback

Name: V18345-2010421001 ABB TZIDC Digital Positioner Double Acting Fail Safe with Analog Feedback
Brand: MOORE AUTOMATION LIMITED
SKU: V18345-2010421001
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	Not specified in cited ABB sources
Brand Name:	ABB
Certification:	Without explosion protection (ABB order code 0)
Model Number:	V18345-2010421001

Detail Information

Place of Origin:

Not specified in cited ABB sources

Brand Name:

ABB

Certification:

Without explosion protection (ABB order code 0)

Model Number:

V18345-2010421001

Product Description:

ABB TZIDC Intelligent Configurable Digital Electro-pneumatic Positioner

Product Family:

TZIDC · Order Base V18345

Case / Mounting:

Aluminium Case With Mechanical Position Indicator; DIN / IEC 534 / NAMUR Or VDI / VDE 3845

Input / Communication:

4–20 MA Two-wire; Connector Plug For LCI Adapter

Output / Safe Position:

Double Acting · Fail Safe

Connections:

Cable ½-14 NPT; Air Pipe ¼-18 NPT

Highlight:

High Light

Highlight:

ABB TZIDC V18345-2010421001 Digital Positioner

4-20 mA Double-Acting Fail-Safe Positioner

Mechanical Indicator with Analog Feedback

Trading Information

Minimum Order Quantity:

Price:

inquires

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

requires

Product Description

ABB OFFICIAL ORDER-CODE PROFILE

V18345-2010421001

ABB TZIDC intelligent electro-pneumatic positioner configured for standard linear or rotary actuator mounting, 4–20 mA two-wire input, double-acting fail-safe operation and analog position feedback.

Exact configuration decoded from ABB order data.

Official profileOrder-code decodeSelection checklistFAQMOORE support

VERIFIED PRODUCT PROFILE

Exact configuration, clearly identified

The values below are decoded from ABB’s TZIDC ordering table for the complete suffix 20-1-0-4-2-1-00-1.

PRODUCT DESCRIPTION

TZIDC digital positioner

Intelligent, configurable electro-pneumatic positioner with indicator and operator panel.

CASE / MOUNTING · 20

Aluminium case with position indicator

For standard linear actuator mounting to DIN / IEC 534 / NAMUR or rotary mounting to VDI / VDE 3845.

INPUT / COMMUNICATION · 1

4–20 mA, two-wire

Includes the connector plug for the ABB LCI adapter; this order-code input digit does not designate the HART option.

OUTPUT / SAFE POSITION · 4

Double acting · fail safe

ABB’s order table assigns code 4 to the double-acting fail-safe pneumatic configuration.

CONNECTIONS · 2

NPT electrical and air threads

Cable thread ½-14 NPT and air-pipe thread ¼-18 NPT.

FEEDBACK / DESIGN · 1 · 00 · 1

Analog feedback · standard finish

Plug-in 4–20 mA analog position-feedback module, no optional mechanical feedback kit, standard design.

ORDER-CODE DECODE

V18345-20 1 0 4 2 1 00 1

Code position	ABB-defined configuration
V18345	TZIDC intelligent, configurable digital positioner
20	Varnished aluminium case with mechanical position indicator; standard linear / rotary mounting
1	4–20 mA two-wire input with LCI adapter connector
0	Without explosion protection
4	Double acting, fail safe
2	½-14 NPT cable thread; ¼-18 NPT air thread
1	Plug-in analog position feedback, 4–20 mA two-wire
00	Without optional mechanical digital feedback kit
1	Standard varnish / coding

PROCUREMENT CHECKLIST

What to confirm before ordering

01 · Exact identity
Use the complete part number V18345-2010421001.

02 · Actuator type
State linear or rotary design, travel / angle and linkage.

03 · Signal requirement
Confirm 4–20 mA two-wire control and the required communication option.

04 · Pneumatic action
Confirm double-acting actuator and the intended fail-safe direction.

05 · Thread standard
Confirm ½-14 NPT cable and ¼-18 NPT air connections.

06 · Project details
Send quantity, destination, required date and clear nameplate photos.

FREQUENTLY ASKED QUESTIONS

Useful answers for technical buyers

Does this exact input option include HART?No. ABB’s order table assigns input code 1 to 4–20 mA two-wire with an LCI adapter connector. HART is a separate input-code option.

Which actuator mounting standards apply?Case code 20 is prepared for linear actuators to DIN / IEC 534 / NAMUR and rotary actuators to VDI / VDE 3845. The correct attachment hardware must match the actuator.

What feedback is included?The feedback digit is 1, specifying a plug-in 4–20 mA two-wire analog position-feedback module; mechanical feedback kit code 00 means none is included.
