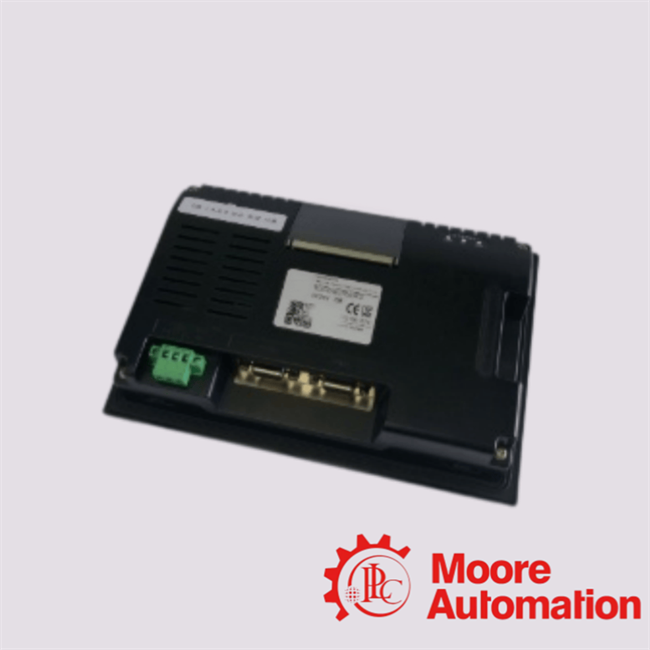

MV570 1TNA928300R0001 ABB HMI Touch Screen Control Panel for Industrial PLC System

Name: MV570 1TNA928300R0001 ABB HMI Touch Screen Control Panel for Industrial PLC System
Brand: MOORE AUTOMATION LIMITED
SKU: MV570 1TNA928300R0001
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE, RoHS
Model Number:	MV570 1TNA928300R0001

Detail Information

Place of Origin:

Sweden

Brand Name:

ABB

Certification:

CE, RoHS

Model Number:

MV570 1TNA928300R0001

Product Description:

Central HMI

ABB Product Number:

1TNA928300R0001

Display:

10.4-inch 4:3 Color TFT/LED, 800 X 600

Operating System:

Android

Power Supply:

24 VDC; 8 W Typical

Front Protection:

IP65 (IEC 60529)

Highlight:

High Light

Highlight:

ABB MV570 10.4-inch Touch HMI

1TNA928300R0001 24 VDC Central HMI

IP65 Front 800 x 600 Android Panel

Trading Information

Minimum Order Quantity:

Price:

inquires

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

requires

Product Description

ABB MV570 · OFFICIAL MANUAL VERIFIED

MV570
Central HMI

ABB product number 1TNA928300R0001. A 10.4-inch industrial touch panel based on a RISC platform with Android, designed as a centralized monitoring and operating interface.

10.4-inch TFT/LED800 × 60024 VDCIP65 front

IDENTITY FIRSTExact MV570 match

Confirm the full product number, hardware/software revision and project backup before replacement or commissioning.

OFFICIAL ABB DATA AT A GLANCE

Six verified product attributes

PRODUCT DESCRIPTION

Central HMI

PRODUCT NUMBER

1TNA928300R0001

MODEL

MV570

DISPLAY

10.4-inch LCD touch panel

OPERATING SYSTEM

Android

COMPLIANCE

CE; RoHS 2002/95/EC

HARDWARE PROFILE

Official specifications that matter during sourcing

Display and visibility

10.4-inch 4:3 color TFT with LED backlight, 800 × 600 maximum resolution, 300 cd/m² brightness and 800:1 contrast.

Processing platform

Freescale i.MX6 dual-core 800 MHz CPU with 1 GB onboard DDR3 SDRAM and 4 GB eMMC NAND flash.

Touch interface

Projected capacitive touch control; ABB specifies more than 10,000,000 single-point touch operations.

Industrial connectivity

One 10/100/1000 Mbps PoE Ethernet port and two USB 2.0 Host Type-A ports.

Power and consumption

24 VDC supply with 8 W typical power consumption at 24 VDC.

Environment and protection

0–55 °C operating temperature; -20–60 °C storage; 5–90% RH non-condensing; IP65 from the front panel.

APPLICATION CONTEXT

Centralized monitoring with a clear data boundary

What ABB documents

Central HMI role
MV570 can serve as the monitoring and operating interface for projects built with modules such as MC510 when SmiSView is installed.

Industrial I/O access
Gigabit-capable Ethernet and dual USB host ports support network and peripheral connections described in the manual.

Panel installation
Front-panel IP65 protection depends on following ABB’s mounting and sealing instructions.

Exact-match checklist

Read the label
Verify MV570 and 1TNA928300R0001.

Check revisions
Record hardware, software and serial label information.

Protect the project
Confirm configuration backup, cutout, connectors and 24 VDC supply before changeover.

PROCUREMENT WORKFLOW

Plan the inquiry before the panel is removed

01 · IDENTIFY

Capture the nameplate

Send clear front, rear and label photos including the complete product number and revision data.

02 · VERIFY

Match installation details

Review panel cutout, mounting, interfaces, power supply and installed application backup.

03 · QUOTE

Define the requirement

Provide quantity, condition preference, destination and required delivery date.

DECISION SUPPORT

Frequently asked sourcing questions

What is the official product identity?

ABB identifies MV570 as a Central HMI with product number 1TNA928300R0001.

What display is documented?

The manual specifies a 10.4-inch 4:3 color TFT/LED display with 800 × 600 resolution.

What must be checked before replacement?

Confirm label identity, hardware/software revision, project backup, cutout, interfaces and 24 VDC power requirements.
