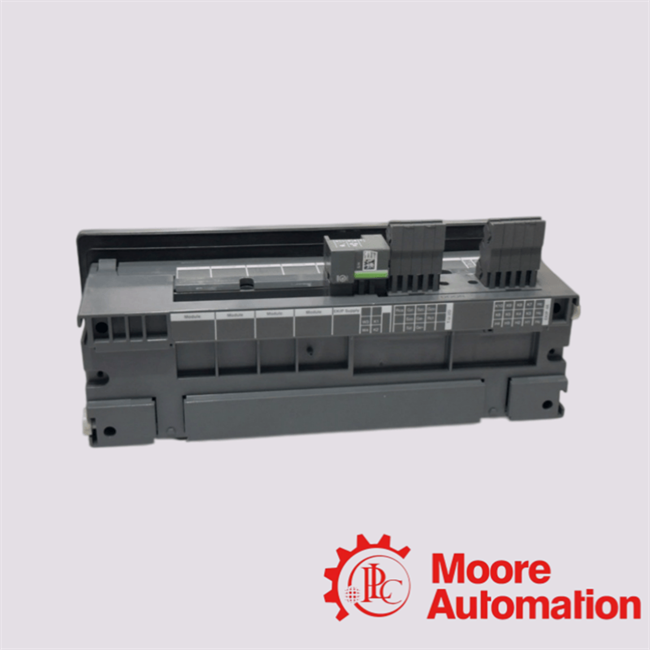

Ekip up Protect 1SDA083360R1 ABB Digital Circuit Breaker Protection Unit for Relay

Name: Ekip up Protect 1SDA083360R1 ABB Digital Circuit Breaker Protection Unit for Relay
Brand: MOORE AUTOMATION LIMITED
SKU: 1SDA083360R1
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE, cUL Listed, UL Listed
Model Number:	1SDA083360R1

Detail Information

Place of Origin:

Sweden

Brand Name:

ABB

Certification:

CE, cUL Listed, UL Listed

Model Number:

1SDA083360R1

Product Description:

Digital Protection Unit For Low-voltage Plants

ABB Ordering Code:

1SDA083360R1

Version:

Ekip UP Protect

Operating Voltage:

Up To 1000 V

Operating Current:

100-6300 A

Frequency / Protection:

50-60 Hz / IP40

Highlight:

High Light

Highlight:

ABB digital circuit breaker protection unit

ABB relay protection unit 1SDA083360R1

ABB module for relay protection

Trading Information

Minimum Order Quantity:

Price:

inquires

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

requires

Product Description

Product Overview

Engineered specifically for low-voltage power distribution and smart grid infrastructure, the ABB Ekip Up Protect (1SDA083360R1) digital protection unit features an advanced multi-function microprocessing relay platform. Compared to traditional static thermal-magnetic relays or single-function trip units, this series solves critical customer pain points of complex multi-vendor system communication and blind-spot grid monitoring by enabling seamless digital monitoring, metering, and protective control for existing third-party low-voltage breakers without hardware replacement.

It is the ideal choice for retrofitting industrial switchgear, critical data center power networks, and renewable energy facility protection schemes requiring advanced directional overcurrent and voltage protection algorithms.

Core Specifications & Value Transformation

Core Parameter	Technical Specification	Value to the Procurement Buyer
Protective Relaying Suite	ANSI 27, 59, 81, 67, 51, 50, 51N/G	Comprehensive Substation Grid Safety: Combines absolute voltage, frequency, and directional overcurrent protections in a single footprint. This eliminates the need for stacking separate auxiliary relays, significantly shrinking control cabinet wiring complexity.
Communication Capabilities	Native Modbus TCP, Modbus RTU, and IEC 61850	Native Smart Factory Integration: Delivers plug-and-play digital telemetry upstream to SCADA, EMS, or cloud asset management software without requiring expensive external protocol gateways.
Metering & Measurement	Class 1 Accuracy (Current, Voltage, Energy, Power)	Revenue-Grade Power Quality Analytics: Functions simultaneously as a high-precision digital power meter, allowing procurement teams to monitor harmonic distortion and power factors directly to avoid utility penalties.
Mounting & Form Factor	DIN-Rail or Door-Flush Multi-Option Mounting	Universal Retrofit Compatibility: Fits into almost any existing switchboard profile, meaning plants can upgrade outdated breakers to smart digital devices in under an hour of scheduled downtime.

Engineer's Note

"The ABB Ekip Up Protect 1SDA083360R1 is a true lifesaver for brownfield plant automation upgrades. When implementing this unit to act as the primary protection relay alongside an older ACB (Air Circuit Breaker) or MCCB (Molded Case Circuit Breaker), always ensure your external current transformers (CTs) and voltage transformers (VTs) match the sensor inputs of the Ekip Up. Properly sizing the Rogowski coils or standard current sensors during installation guarantees that the unit's Class 1 measurement system triggers its microsecond-level fault clearance paths without artificial harmonic tripping."

Frequently Asked Questions

Q: Does our existing old circuit breaker need to be manufactured by ABB to use the Ekip Up Protect?

No. The entire design philosophy behind the Ekip Up series is brand-agnostic. It works as an external digital protection unit that connects to the trip coil or opening release of any manufacturer's circuit breaker, instantly digitizing your legacy infrastructure.

Q: What is the primary difference between the Ekip Up 'Protect' variant and the standard 'Control' or 'Monitor' models?

The 'Protect' version (such as the 1SDA083360R1) unlocks the full suite of advanced ANSI protective relaying functions, including directional overcurrent and voltage/frequency thresholds. The lower tiers focus primarily on data logging or basic metering without the dedicated safety tripping loops.

Q: How do we load our specific protection curves into this digital relay?

Configurations and custom coordination time-current curves are easily programmed using ABB's intuitive Ekip Connect software via a standard front-panel micro-USB port or across the active bus network, allowing for rapid commissioning and safety validation.
