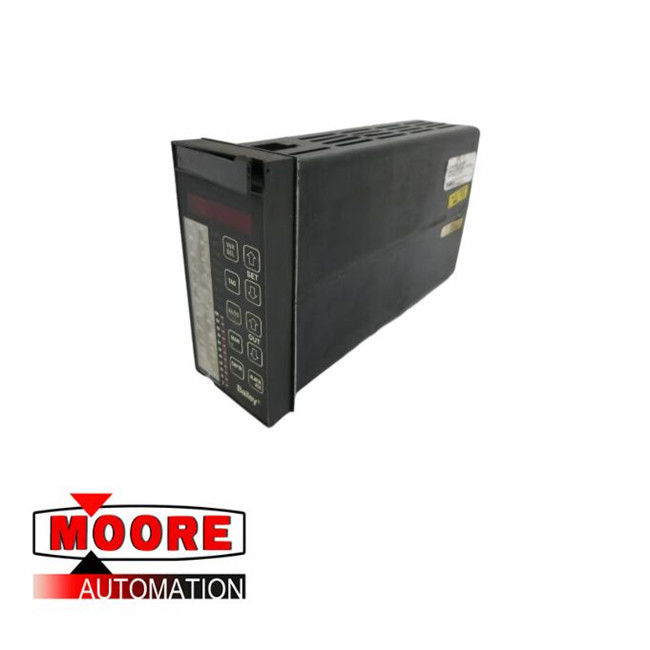

IISAC01 ABB Analog Control Station
⇒ Click here for good price IISAC01
| Brand/Manufacturer |
ABB /SWEDEN |
| Part Number |
IISAC01
|
| Alternate Part Number |
IISAC01 |
| Description |
Analog Control Station |
| Dimennsions |
30x10x38cm
|
| Weight |
1.25kg |
MOORE NEWS
- Connect the end of the NKTD01 with 1 connector to the slot on the TMU backplane that is assigned to the IDS termination module.
- Connect J1 on the ICS termination module to J1 on the IDS termination module using ribbon cable 6634408A2.
- Connect twisted pair serial link wiring between NIMP01 and NICS01 modules. Take care not to cross A and B serial channels.
- Push the termination module into the TMU unit until it seats in the NKTM01 and NKTM11, or NKTU02 cable connector in the TMU backplane (cable from termination module to the module).
- Picture shows a termination module and single station with bypass and interconnection configuration with 1 bypass and 2 nonbypass stations. A maximum of 4 stations can be interconnected together.
