ABB PM864AK02 3BSE018164R1 Controller Kit for Energy Management Project

Name: ABB PM864AK02 3BSE018164R1 Controller Kit for Energy Management Project
Brand: MOORE AUTOMATION LIMITED
SKU: PM864AK02 3BSE018164R1
Price: Negotiable USD
Availability: InStock

Product Details:

Place of Origin:	Sweden
Brand Name:	ABB
Certification:	CE, cUL Listed, UL Listed
Model Number:	PM864AK02 3BSE018164R1

Detail Information

Place of Origin:

Sweden

Brand Name:

ABB

Certification:

CE, cUL Listed, UL Listed

Model Number:

PM864AK02 3BSE018164R1

Product Description:

Redundant AC 800M Processor Unit Kit For System 800xA

Package Contents:

2 X PM864AK01; 1 X TK850; 1 X TK851

Processor / Memory:

MPC862, 96 MHz; 32 MB RAM

Redundancy:

CPU Redundancy; Max. 10 Ms Switchover

Power Supply:

24 V DC (19.2-30 V DC); 287 MA Typical

Operating Environment:

5-55 C; 5-95% RH; IP20

Highlight:

High Light

Highlight:

ABB PM864AK02 Redundant AC 800M Processor Kit

96 MHz 32 MB RAM Max 10 ms Switchover

Dual PM864AK01 TK850 TK851 3BSE018164R1

Trading Information

Minimum Order Quantity:

Price:

inquires

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

requires

Product Description

ABB AC 800M • VERIFIED PRODUCT PROFILE

PM864AK02 • 3BSE018164R1

Redundant Processor Unit kit for ABB System 800xA. The identity, package contents and technical values below are limited to ABB-published documentation.

2 ×PM864AK01	96 MHzClock frequency	32 MBInstalled RAM	≤ 10 msRedundancy switchover	24 V DCRated supply

Product identity at a glance

ARTICLE

Exact ABB identity

PM864AK02 Redundant Processor Unit
Article no. 3BSE018164R1

PACKAGE

Redundant kit

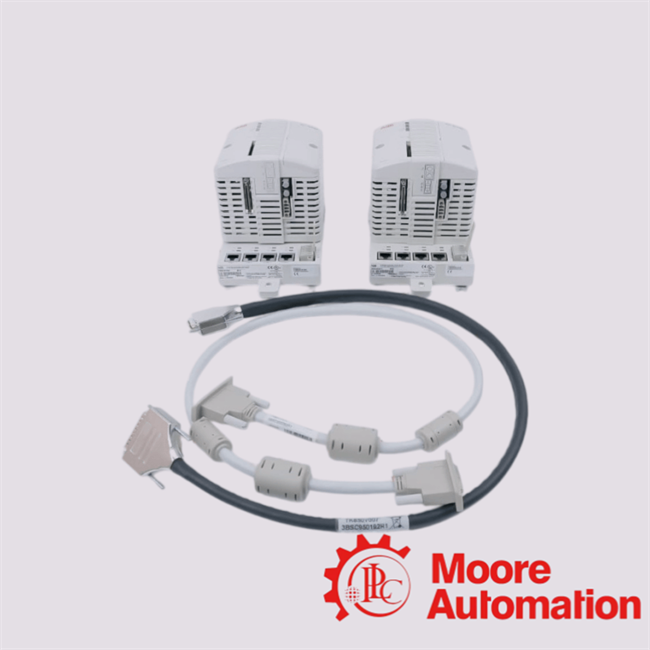

2 × PM864AK01 processor units, 1 × TK850 CEX-bus expansion cable and 1 × TK851 RCU-Link cable.

PLATFORM

AC 800M / System 800xA

MPC862 processor with CPU redundancy support and integrated Ethernet connectivity.

Six verified product facts

Attribute	ABB-published value
Product description	Redundant AC 800M processor unit kit for System 800xA.
Package contents	2 × PM864AK01, 1 × TK850 CEX-bus cable, 1 × TK851 RCU-Link cable.
Processor / memory	MPC862 processor, 96 MHz clock frequency, 32 MB RAM; 23.522 MB available for application.
Redundancy	CPU redundancy supported; ABB states a maximum 10 ms switchover for redundant configuration.
Power supply	24 V DC (19.2–30 V DC), maximum 5% ripple; 287 mA typical and 487 mA maximum at +24 V.
Operating environment	+5 to +55 °C; 5–95% RH non-condensing; protection class IP20.

Procurement focus: Match the complete article number 3BSE018164R1 and verify that both PM864AK01 units plus TK850 and TK851 cables are included in the requested package.

Performance, interfaces and capacity

Area	Specification
Application execution	1000 Boolean operations: 0.15 ms.
Application storage	2 MB Flash PROM firmware storage; flash memory support for application and data.
Ethernet	2 channels, 10 Mbit/s, RJ-45 connection.
CEX-bus	Up to 12 communication interface modules.
Modulebus I/O	Maximum 96 modules non-redundant or 84 modules redundant.
Mechanical	119 × 186 × 135 mm; weight with base approximately 1100 g.
Typical dissipation	6.9 W.
Storage temperature	−40 to +70 °C.

Verification workflow

01 • Confirm identityUse the complete part number on the unit label and purchase request: PM864AK02 / 3BSE018164R1.

02 • Confirm kit contentsCheck two PM864AK01 processor units and the TK850 plus TK851 cables before acceptance.

03 • Confirm system fitReview installed AC 800M hardware, software release, I/O architecture and communication modules with the system owner.

Common buyer questions

Is PM864AK02 a single processor?

No. ABB identifies PM864AK02 as a redundant processor unit package containing two PM864AK01 units and the stated interconnection cables.

What redundancy transfer time is published?

ABB lists a maximum switchover time of 10 ms for the redundant configuration.

What should be checked before ordering?

Confirm the complete article number, package contents, installed System 800xA / AC 800M configuration, software compatibility and required communication interfaces.
