6AV2123-2DB03-0AX0 Siemens Basic Panel With Key/touch Operation And PROFINET Interface For Crisp Visualization And Intuitive Machine Control In Budget-conscious Automation Environments

Name: 6AV2123-2DB03-0AX0 Siemens Basic Panel With Key/touch Operation And PROFINET Interface For Crisp Visualization And Intuitive Machine Control In Budget-conscious Automation Environments
Brand: MOORE AUTOMATION LIMITED
SKU: 6AV2123-2DB03-0AX0
Availability: InStock

Product Details:

Place of Origin:	Germany
Brand Name:	Siemens
Certification:	CO.CQ
Model Number:	6AV2123-2DB03-0AX0

Detail Information

Place of Origin:

Germany

Brand Name:

Siemens

Certification:

CO.CQ

Model Number:

6AV2123-2DB03-0AX0

Product Series:

SIMATIC HMI Basic Panels (2nd Generation)

Part Number:

6AV2123-2DB03-0AX0

Product Status:

Active / Current Production Model

Display Orientation:

Supports Both Landscape And Portrait Installations

Highlight:

High Light

Highlight:

KTP400 Basic HMI Panel

6AV2123-2DB03-0AX0 Display

Siemens PROFINET Touchscreen

Trading Information

Minimum Order Quantity:

Price:

inquiries

Packaging Details:

new and original with factory sealed

Delivery Time:

2-3 work days

Payment Terms:

T/T

Supply Ability:

requires

Product Description

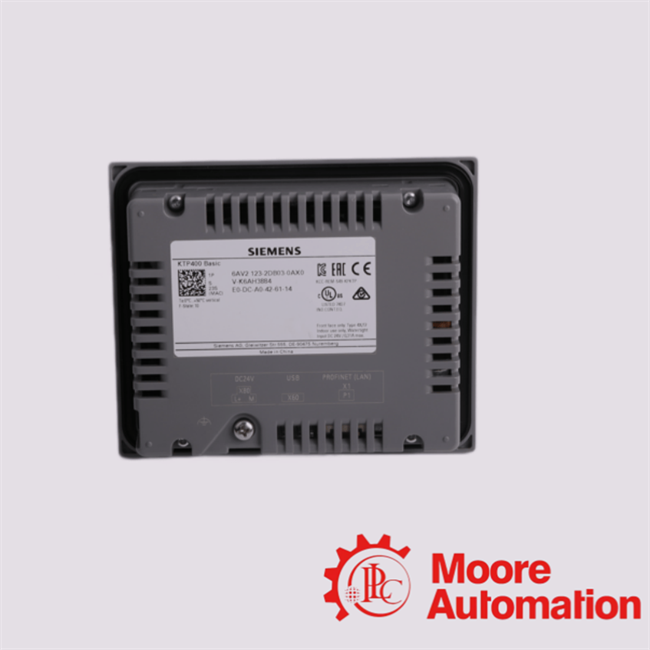

6AV2123-2DB03-0AX0 Siemens Basic Panel With Key/Touch Operation And PROFINET Interface

Siemens Basic Panel with key/touch operation and PROFINET interface for crisp visualization and intuitive machine control in budget-conscious automation environments.

Engineer's Note

"Our senior HMI configuration engineer notes that when configuring the KTP400 Basic, you should monitor your project's tag memory allocations closely. As a 'Basic' tier panel, it supports up to 250 tags per project. If your system scales up and requires complex data archiving or extensive script execution, you should consider bridging data or stepping up to a Comfort Panel series to avoid runtime lag."

Field Project Case

"This exact 6AV2123-2DB03-0AX0 panel was successfully integrated onto a series of compact water filtration skid systems deployed across various manufacturing facilities. Given the high-humidity splash zones, the panel's IP65 front protection successfully sealed out moisture, while the clear widescreen allowed field operators to track filtration parameters and manage system flushes effortlessly."

Frequently Asked Questions

Q: Can this KTP400 Basic panel be configured using older standalone WinCC Flexible software?

A: No, the second-generation Basic Panels (including the 6AV2123-2DB03-0AX0) cannot be programmed with legacy WinCC Flexible. They require Siemens TIA Portal WinCC Basic (or Comfort/Advanced/Professional) V13 or higher for project development and downloading.

Q: Does this HMI model support external USB data logging for long-term production reports?

A: While the panel features a USB 2.0 interface, it is intended primarily for firmware updates, project backup/restore, and connecting a keyboard or mouse. For continuous, high-volume historical data logging or extensive script-based logging, a Comfort Panel is required.

Q: Is the KTP400 Basic a direct drop-in replacement size-wise for the older KP400 or KTP400 Mono panels?

A: It serves as the direct generation replacement, but you must verify the cabinet cutout. The KTP400 Basic 2nd Gen uses a 4.3" widescreen format, meaning its physical cutout dimensions (123 mm x 99 mm) differ slightly from the older 1st Gen square screen variants.
