PRODUCT DETAILS

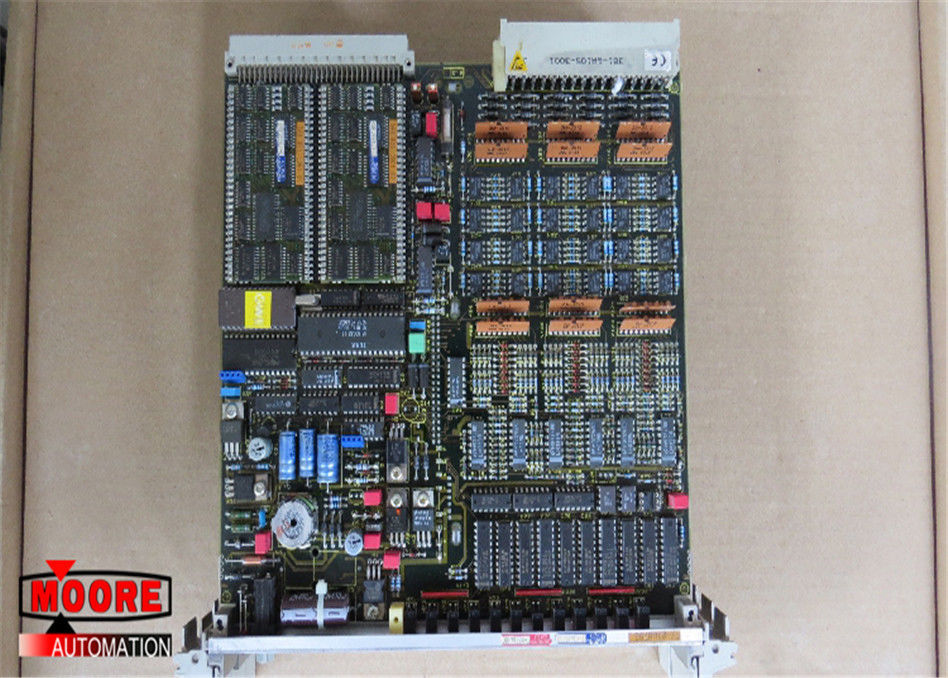

Module fum 360fail-safe binary outout module-24 contoller outputs
24 v DC/120 ma for coupling relays-output status indication via
front panel leds-suitable for redundant use
Features
• You need the shield contact to connect cable shields (for example,
analog electronic modules, 1COUNT 24V/100kHz electronic module
and 1SSI electronic module)
• Fit the shield contact on the terminal module.
• The shield contact consists of a shield contact element, a conductor
rail, (3 x 10 mm), a shield terminal, and a ground connection terminal
Prerequisites
• The terminal modules must be installed.
Tool required
• 3 mm screwdriver
• Metal-cutting saw
Installing the Shield Contact
1. Push the shield contact element onto the first terminal module
from below
2. Push the shield contact element onto the last terminal module from
below. In order to achieve stability of the conductor rail between two
shield contact elements during installation, you must connect an
additional shield contact element after every sixth terminal module
(given a width of 15 mm)
3. Saw off the correct length from the conductor rail. The length of the
conductor rail should be: the distance between the shield contact
elements + 45 mm
4. Push the conductor rail into the shield contact element. After
installation, the conductor rail must protrude from the shield contact
element by 15 mm on the left or right
5. Attach the shield terminals on the conductor rail (between the
shield contact elements)
6. Attach the ground connection terminal to the protruding conductor
rail
