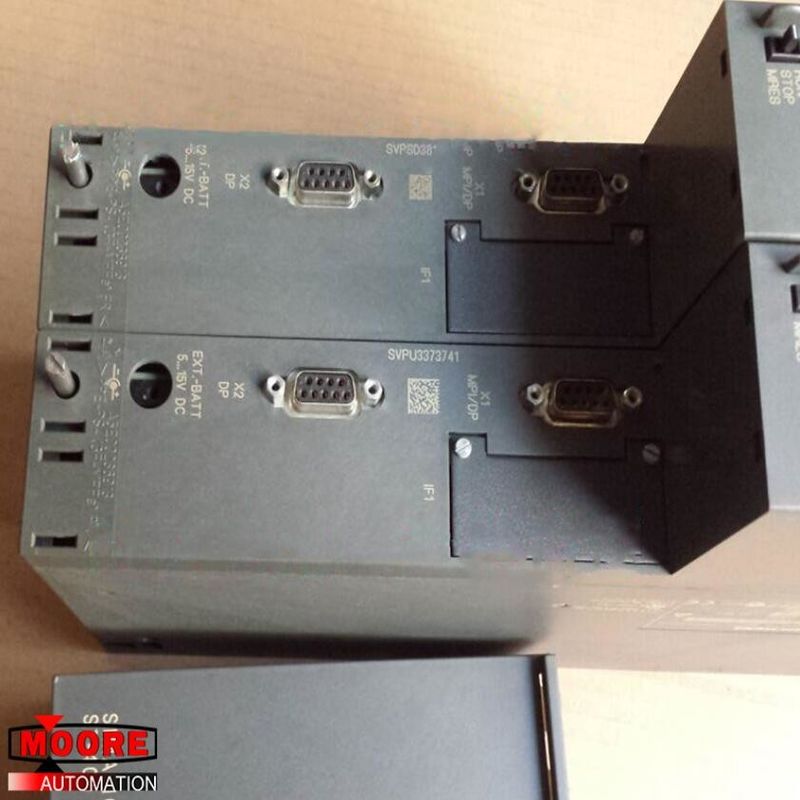

6ES7 414-3XJ04-0AB0 6ES7414-3XJ04-0AB0 Siemens Simatic S7 CPU414-3DP
  • 6ES7 414-3XJ04-0AB0 6ES7414-3XJ04-0AB0 Siemens Simatic S7 CPU414-3DP

6ES7 414-3XJ04-0AB0 6ES7414-3XJ04-0AB0 Siemens Simatic S7 CPU414-3DP

Place of Origin GERMANY
Brand Name Siemens
Certification CO.CQ
Model Number 6ES7414-3XJ04-0AB0
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
6ES7414-3XJ04-0AB0
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Siemens
Weight:
4lbs
High Light:

siemens plc

,

siemens power supply module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description
Brand/Manufacturer SIEMENS/GERMANY
Part Number 6ES7414-3XJ04-0AB0
Alternate Part Number 6ES7414-3XJ04-0AB0
Description SIMATIC S7 CPU414-3DP
Dimennsions WHD 5*29*21.9cm
Weight 1.1kg



Product Details
SIMATIC S7-400, CPU 414-3 Work memory 768 KB (384 KB code, 384 KB data) 1st interface MPI/DP 12 Mbit/s, 2nd interfacePROFIBUS DP, 3rd interface for IFM only residual quantities available.

CiR–Configuration in RUN:

CiR synchronization time, basic load 100 ms

CiR synchronization time, time per I/O byte 120 µs



Input current:

from backplane bus 5 V DC, typ. 1.5 A

from backplane bus 5 V DC, max. 1.6 A; typ. 1.5 A

from backplane bus 24 V DC, max. 450 mA; Total current consumption of the components connected to the MPI/DP interfaces, but no more than 150 mA per interface.



Power loss:

Power loss, typ. 7.5 W



Work memory:

integrated 768 kbyte

integrated (for program) 384 kbyte

integrated (for data) 384 kbyte

expandable No



Load memory:

expandable FEPROM Yes; with Memory Card (FLASH)

expandable FEPROM, max. 64 Mbyte

integrated RAM, max. 256 kbyte

expandable RAM Yes; with Memory Card (RAM)

expandable RAM, max. 64 Mbyte

6ES7 414-3XJ04-0AB0 6ES7414-3XJ04-0AB0 Siemens Simatic S7 CPU414-3DP 0    6ES7 414-3XJ04-0AB0 6ES7414-3XJ04-0AB0 Siemens Simatic S7 CPU414-3DP 1
