| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6ES7414-4HJ00-0AB0 |
| Alternate Part Number |
6ES7414-4HJ00-0AB0 |
| Description |

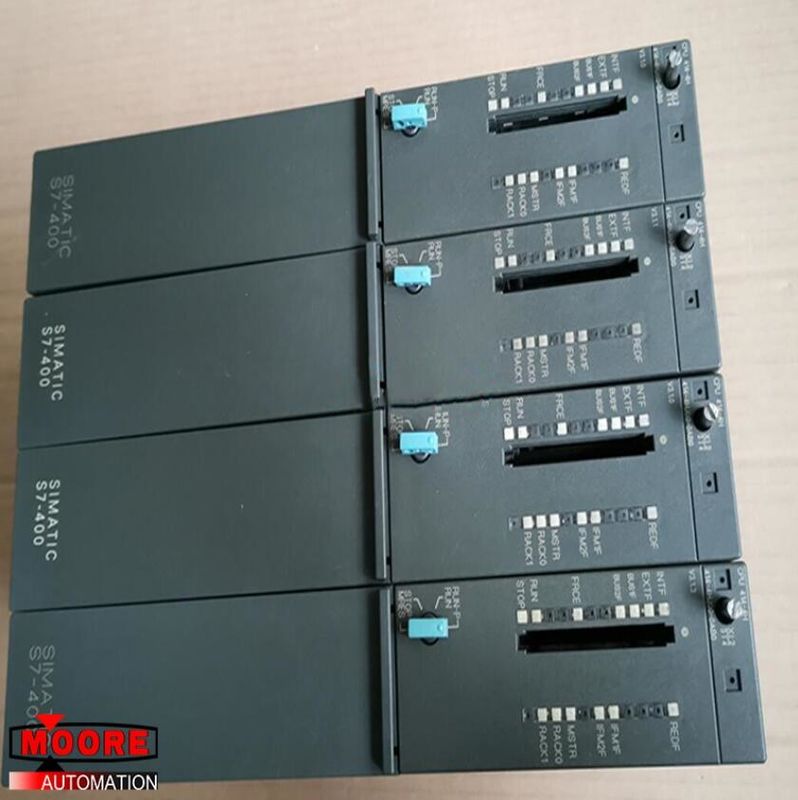

SIMATIC S7 CPU414-4H |
| Dimennsions |
WHD 6.1*29.1*21cm |
| Weight |
1.0kg |
Product Details
SIMATIC S7-400H, CPU 414H CENTRAL UNIT FOR S7-400H AND S7-400F/FH, 4 INTERFACES: 1 MPI/DP, 1 DP AND 2 FOR SYNC MODULES, 768 KB MEMORY (384 KB DATA/384 KB CODE)
Supply voltage:
Rated value (DC) 24 V DC Yes
Input current:
from backplane bus 5 V DC, typ. 1.8 A
from backplane bus 5 V DC, max. 2 A
from backplane bus 24 V DC, max. 300 mA; Total current consumption of the components connected to the MPI/DP interfaces, but no more than 150 mA per interface
Work memory:
integrated 768 kbyte; 384 KB for program; 384 KB for data
expandable No
Load memory:
expandable FEPROM Yes; with Memory Card (FEPROM)
expandable FEPROM, max. 64 Mbyte
integrated RAM, max. 256 kbyte
expandable RAM Yes; with Memory Card (RAM)
expandable RAM, max. 64 Mbyte
Backup:
present Yes
with battery Yes; all data
without battery No
Backup battery:
Backup current, typ. 75 µA
Backup current, max. 860 µA
Feeding of external backup voltage to CPU 5 to 15 VDC
