| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6ES7414-3XJ00-0AB0 |
| Alternate Part Number |
6ES7414-3XJ00-0AB0 |
| Description |

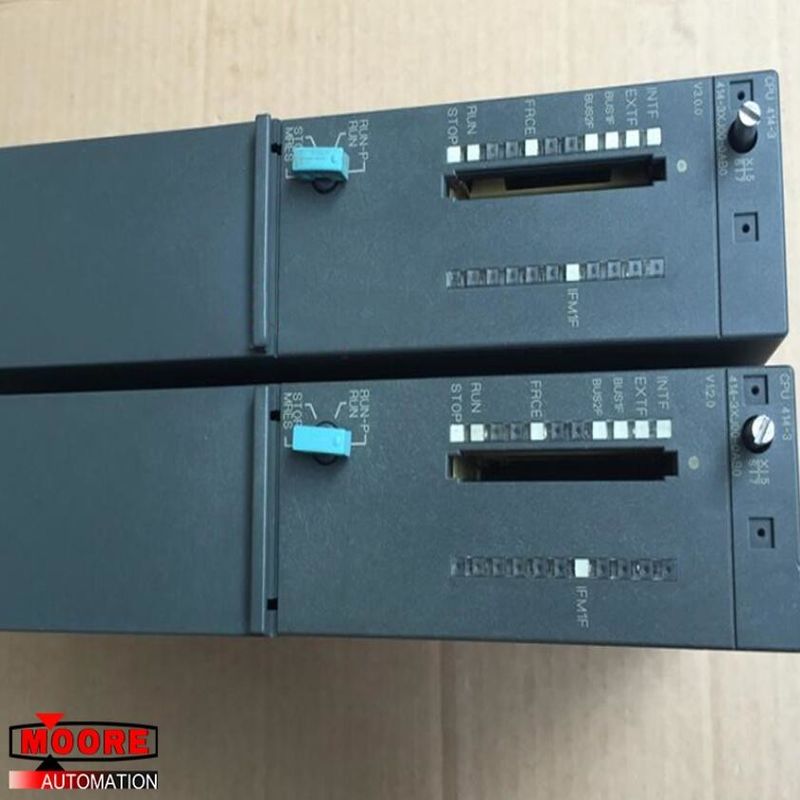

SIMATIC S7 CPU414-3DP |
| Dimennsions |
WHD 5.1*29.1*21.5cm |
| Weight |
1.07kg |
Product Details
SIMATIC S7-400, CPU 414-3 Work memory 768 KB (384 KB code,384 KB data) 1st interface MPI/DP 12 Mbit/s, 2nd interface PROFIBUS DP, 3rd interface for IFM only residual quantities available.
CiR-Configuration in RUN:
CiR synchronization time, basic load 100 ms
CiR synchronization time, time per I/O byte 120 µs
Supply voltage:
Rated value (DC) 24 V DC Yes
Input current:
from backplane bus 5 V DC, typ. 1.5 A
from backplane bus 5 V DC, max. 1.6 A; typ. 1.5 A
from backplane bus 24 V DC, max. 450 mA; Total current consumption of the components connected to the MPI/DP interfaces, but no more than 150 mA per interface
CPU processing times:
for bit operations, typ. 0.1 µs
for word operations, typ. 0.1 µs
for fixed point arithmetic, typ. 0.1 µs
for floating point arithmetic, typ. 0.6 µs
CPU-blocks:
DB Number, max. 4 095; DB 0 reserved ; Size, max. 64 kbyte
FB Number, max. 2 048; Size, max. 64 kbyte
FC Number, max. 2 048; Size, max. 64 kbyte
OB
Number, max. see instruction list
Size, max. 64 kbyte
Number of time alarm OBs 4
Number of delay alarm OBs 4
Number of cyclic interrupt OBs 4
Number of process alarm OBs 4
Nesting depth
per priority class 24
additional within an error OB 2
