| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6ES7414-2XL07-0AB0 |
| Alternate Part Number |
6ES7414-2XL07-0AB0 |
| Description |

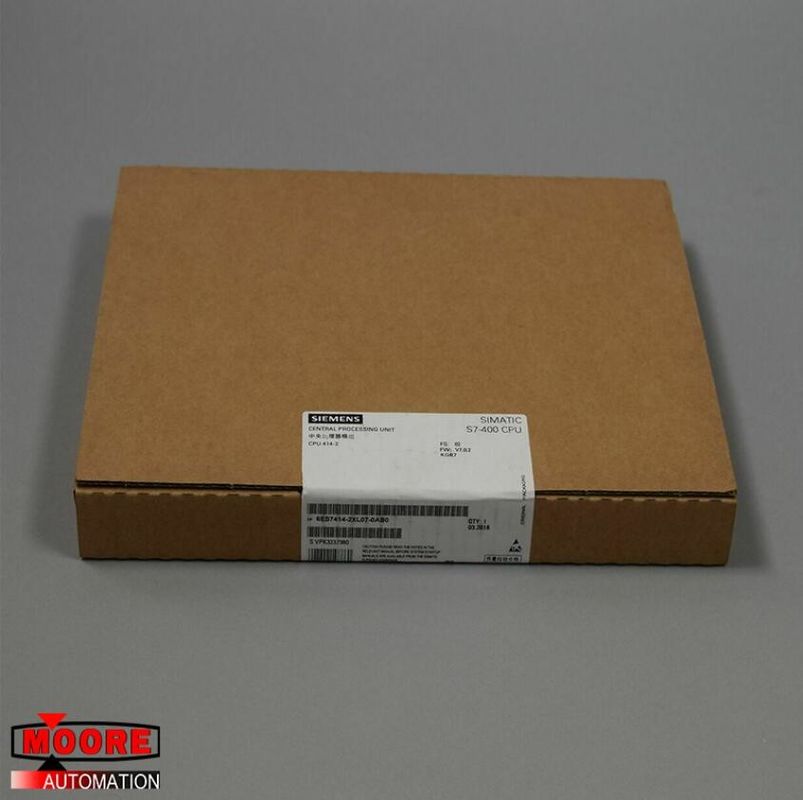

SIMATIC S7-400H CPU414-2 |
| Dimennsions |
WHD 2.5*29*21.9cm |
| Weight |
0.7kg |
Product Details
Interfaces:
Interfaces/bus type 1 x MPI/PROFIBUS DP, 1 x PROFIBUS DP
Number of RS 485 interfaces 2; Combined MPI / PROFIBUS DP and PROFIBUS DP
Interface:
Interface type Integrated
Physics RS 485 / PROFIBUS + MPI
Isolated Yes
Power supply to interface (15 to 30 V DC), max. 150 mA
Number of connection resources MPI: 32, DP: 16
Functionality:
MPI Yes
PROFIBUS DP master Yes
PROFIBUS DP slave Yes
MPI:
Number of connections 32; If a diagnostics repeater is used on the line, the number of connection resources on the line is reduced by 1
Transmission rate, max. 12 Mbit/s
Communication functions:
PG/OP communication Yes
Number of connectable OPs without messageprocessing 63
Number of connectable OPs with messageprocessing 63; When using Alarm_S/SQ and Alarm_D/DQ
Data record routing Yes
S7 message functions:
Number of login stations for message functions, max. 63; Max. 63 with Alarm_S/SQ and Alarm_D/DQ (OPs); max. 8
with Alarm, Alarm_8, Alarm_8P, Notify and Notify_8 (e.g. WinCC)
Symbol-related messages Yes
SCAN procedure Yes
Block related messages Yes
Process diagnostic messages Yes
simultaneously active Alarm-S blocks, max. 400; Simultaneously active alarm_S/SQ blocks or alarm_D/DQ
blocks
Alarm 8-blocks Yes
Number of instances for alarm 8 and S7communication blocks, max.1 200 preset, max. 300
Process control messages Yes
Number of archives that can log on simultaneously (SFB 37 AR_SEND) 16
