| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6ES7414-4HJ04-0AB0 |
| Alternate Part Number |
6ES7414-4HJ04-0AB0 |
| Description |

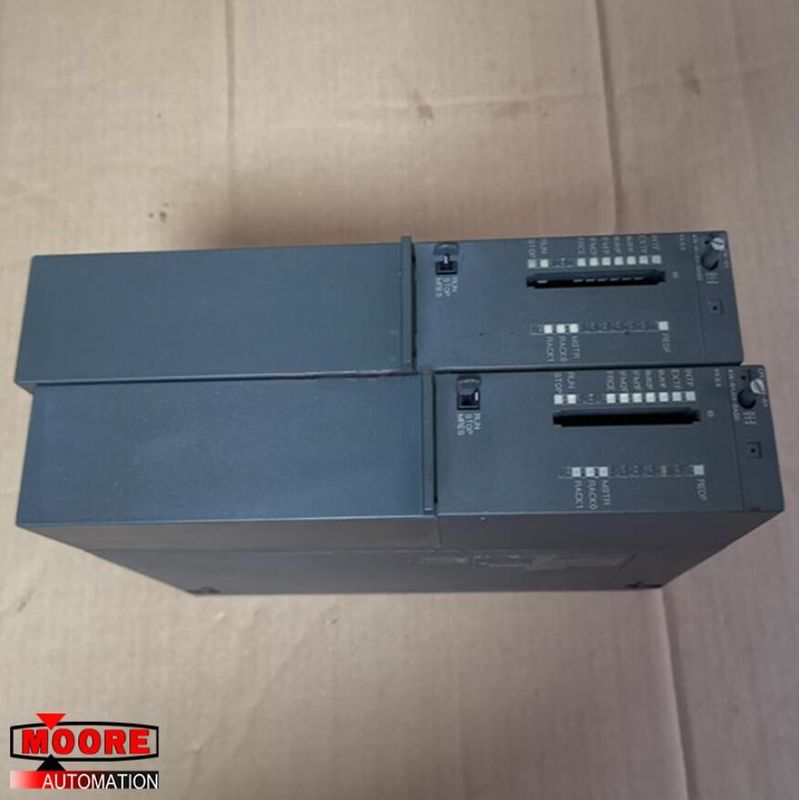

SIMATIC S7 CPU414-3DP |
| Dimennsions |
WHD 5.0*29.0*21.9cm |
| Weight |
1.07kg |
Product Details
SIMATIC S7-400H, CPU 414H Central processing unit for S7-400H and S7-400F/FH, 4 interfaces: 1 MPI/DP, 1 DP and 2 for sync modules, 1.4 MB memory (700 KB data/700 KB program).
General information:
Product type designation CPU 414-4H
Supply voltage:
Rated value (DC) 24 V DC Yes
Input current:
from backplane bus 5 V DC, typ. 1 800 A
from backplane bus 5 V DC, max. 2 A
Power loss:
Power loss, typ. 4.5 W
Work memory:
integrated (for program) 700 kbyte
integrated (for data) 700 kbyte
expandable No
Load memory:
expandable FEPROM Yes; with Memory Card (FLASH)
expandable FEPROM, max. 64 Mbyte
integrated RAM, max. 256 kbyte
expandable RAM Yes; with Memory Card (RAM)
expandable RAM, max. 64 Mbyte
Hardware configuration:
Number of expansion units, max. 21
Multicomputing No
Interface modules:
Number of connectable IMs (total), max. 6
Number of connectable IM 460s, max. 6
Number of connectable IM 463s, max. 6; IM 463-2
Number of DP masters:
integrated 2
via CP 10
via IM 467 0
Mixed mode IM + CP permitted No; IM 467 cannot be used jointly with CP 443-5 Ext.
via interface module 0
Number of operable FMs and CPs (recommended):
FM 32; Limited by number of slots and number of connections
CP, PtP 32; Limited by number of slots and number of connections
CP, LAN 32; Limited by number of slots and number of connections
Slots:
required slots 2
