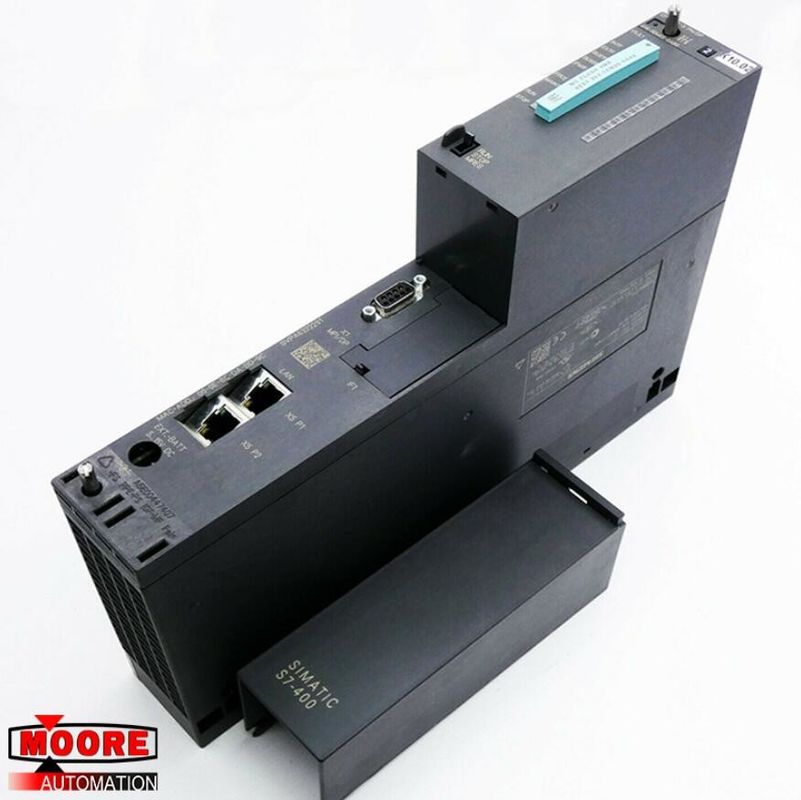

6ES7 414-3EM05-0AB0 6ES7414-3EM05-0AB0 Siemens SIMATIC S7-400 CPU414-3
  • 6ES7 414-3EM05-0AB0 6ES7414-3EM05-0AB0 Siemens SIMATIC S7-400 CPU414-3

6ES7 414-3EM05-0AB0 6ES7414-3EM05-0AB0 Siemens SIMATIC S7-400 CPU414-3

Place of Origin GERMANY
Brand Name Siemens
Certification CO.CQ
Model Number 6ES7414-3EM05-0AB0
Product Details
Manufacture Year:
2020
Con 6DS1311-8AEtrol System:
6ES7414-3EM05-0AB0
Application:
Nuclear Power Plant
Lead Time:
In Stock
Description:
Siemens
Weight:
4lbs
High Light:

siemens plc

,

siemens power supply module

Payment & Shipping Terms
Minimum Order Quantity
1
Price
inquiry
Packaging Details
new and original with factory sealed
Delivery Time
today
Payment Terms
T/T
Supply Ability
10 pieces a day
Product Description
Brand/Manufacturer Siemens/GERMANY
Part Number 6ES7414-3EM05-0AB0
Alternate Part Number 6ES7414-3EM05-0AB0
Description SIMATIC S7 CPU414-3DP
Dimennsions WHD 5.0*29.0*21.9cm
Weight 1.07kg



Product Details

SIMATIC S7-400, CPU 414-3 PN/DP Central processing unit with: work memory 2.8 MB, (1.4 MB code, 1.4 MB data), Interfaces: 1st interface MPI/DP 12 Mbit/s,(X1), 2nd interface Ethernet/PROFINET (X5), 3rd interface IF 964-DP plug-in (IF1).

General information:

Product type designation CPU 414-3 PN/DP

HW functional status 05

Firmware version V5.3

Engineering with:Programming package STEP 7 V5.4 SP5 or higher

CiR – Configuration in RUN:

CiR synchronization time, basic load 100 ms

CiR synchronization time, time per I/O byte 15 µs; Time per I/O byte

Supply voltage:Rated value (DC) 24 V DC No; Power supply via system power supply

Input current:

from backplane bus 5 V DC, typ. 1.2 A

from backplane bus 5 V DC, max. 1.4 A

from backplane bus 24 V DC, max. 300 mA; 150 mA per DP interface

from interface 5 V DC, max. 90 mA; At each DP interface



Battery:

Backup battery:

Backup current, typ. 125 µA; up to 40 °C

Backup current, max. 550 µA

Backup time, max. See reference manual, module data, Chapter 3.3

Feeding of external backup voltage to CPU 5 V DC to 15 V DC

CPU processing times:

for bit operations, typ. 45 ns

for word operations, typ. 45 ns

for fixed point arithmetic, typ. 45 ns

for floating point arithmetic, typ. 135 ns



CPU-blocks:

DB:

Number, max. 6 000; Number range: 1 to 16000

Size, max. 64 kbyte

FB:

Number, max. 3 000; Number range: 0 to 7999

Size, max. 64 kbyte

FC:

Number, max. 3 000; Number range: 0 to 7999

Size, max. 64 kbyte

6ES7 414-3EM05-0AB0 6ES7414-3EM05-0AB0 Siemens SIMATIC S7-400 CPU414-3 0
