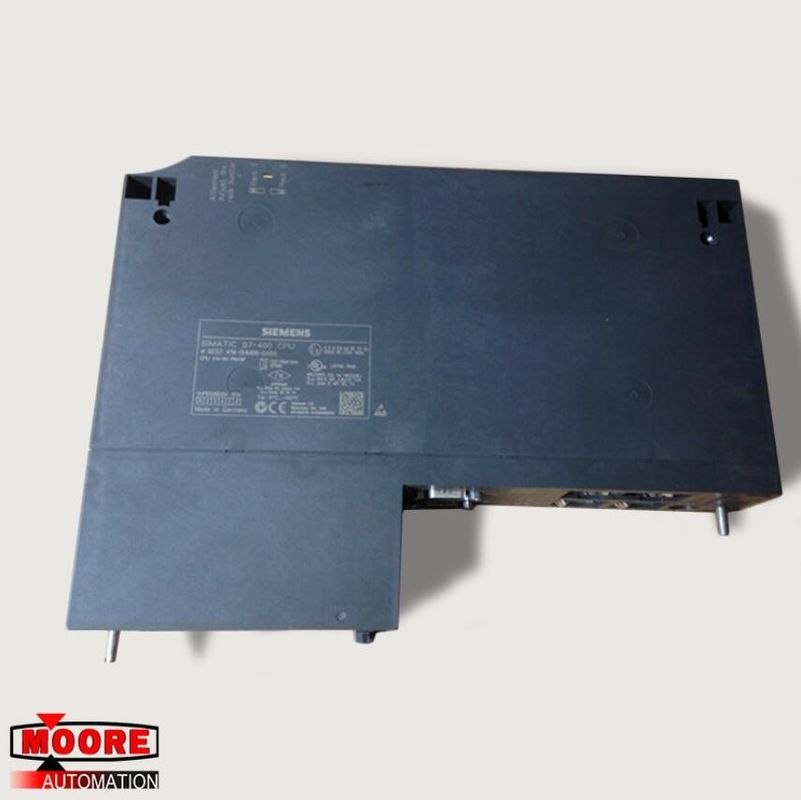

6ES7 414-5HM06-0AB0 6ES7414-5HM06-0AB0 Siemens Module SIMATIC S7-400 CPU414-5H

Product Details

SIMATIC S7-400H, CPU 414-5H, central processing unit for S7-400H and S7-400F/FH, 5 interfaces: 1x MPI/DP, 1x DP, 1x PN and 2 for sync modules, 4 MB memory (2 MB data/2 MB program)

Counters, timers and their retentivity:

S7 counter:Number 2 048

Retentivity:adjustable Yes; lower limit 0; upper limit 2 047; preset Z 0 to Z 7

Counting range: lower limit 0; upper limit 999

IEC counter:

present Yes

Type SFB

Number Unlimited (limited only by RAM capacity)

S7 times: Number 2 048

Retentivity: adjustable Yes; lower limit 0; upper limit 2 047; preset No times retentive

Time range:lower limit 10 ms; upper limit 9 990 s

IEC timer:

present Yes

Type SFB

Number Unlimited (limited only by RAM capacity)

Data areas and their retentivity:

retentive data area in total Total working and load memory (with backup battery)

Flag: Number, max. 8 192 byte; Retentivity preset MB 0 to MB 15; Number of clock memories 8; in 1 memory byte

Local data: adjustable, max. 16 kbyte; preset 8 kbyte

Address area:

I/O address area: Inputs 8 kbyte; Outputs 8 kbyte

Process image:

Inputs, adjustable 8 kbyte

Outputs, adjustable 8 kbyte

Inputs, default 256 byte

Outputs, default 256 byte

consistent data, max. 244 byte

Access to consistent data in process image Yes

Subprocess images:Number of subprocess images, max. 15

Digital channels:

Inputs 65 536-of which central 65 536

Outputs 65 536-of which central 65 536

Analog channels:

Inputs 4 096-of which central 4 096

Outputs 4 096-of which central 4 096
