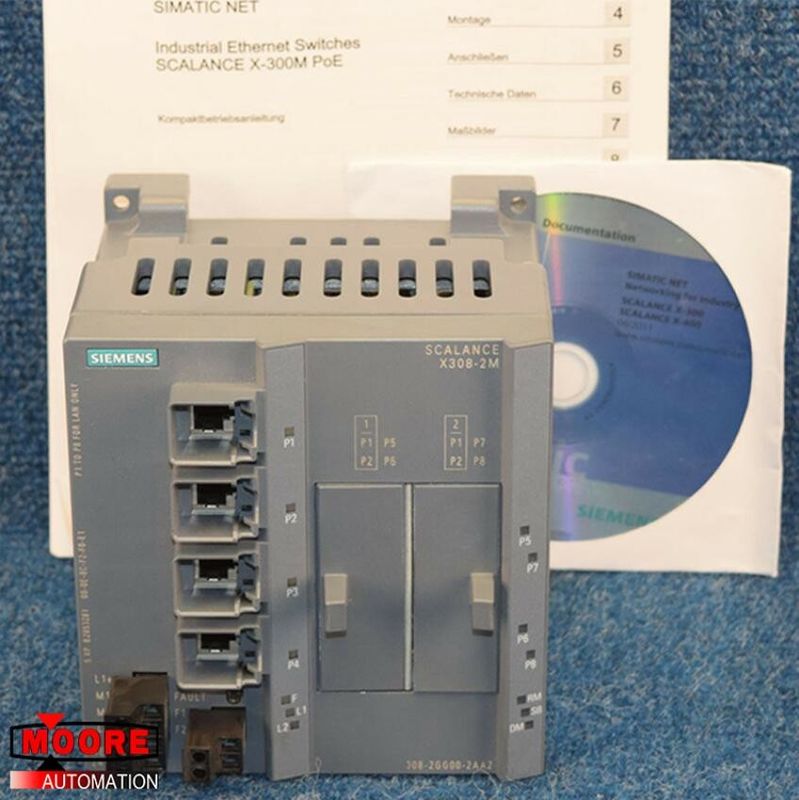

6GK5 308-2GG00-2AA2 6GK5308-2GG00-2AA2 X308-2M Siemens Module Net Industrial Ethernet Switch

Product Details

SCALANCE X308-2M; managed IE switch, compact; 4x 10/100/1000 Mbit/s for RJ45 ports electrical; 2x 100/1000 Mbit/s for 2-port media modules, electrical or optical; LED diagnostics; error signaling Contact; Select/set button; PROFINET IO device; network management; Integrated redundancy manager; office features (RSTP, VLAN, IGMP,..); C-plug in scope of delivery.

Supply voltage, current consumption, power loss:

Type of voltage supply / redundant power supply unit No

Type of voltage / of the supply voltage DC

Supply voltage:external 24 V; external / minimum 18 V; external / maximum 32 V

Product component / fusing at power supply input Yes

Fuse protection type / at input for supply voltage F 3 A / 32 V

Consumed current / maximum 0.7 A

Power loss [W]:at DC / at 24 V 16.6 W

Ambient conditions:

Ambient temperature

during operation -40 ... +70 °C

during storage -40 ... +70 °C

during transport -40 ... +70 °C

Note Reduced operating temperature through the use of mediamodules (-40 °C to +70 °C) or SFP plug-in transceivers (-40 °C to+60 °C). If the device is installed in the vertical position, the maximum operating temperature is reduced to +50 °C.

Relative humidity:at 25 °C / without condensation / during operation / maximum 95 %

Protection class IP IP20

Design compact

Width 120 mm; Height 125 mm; Depth 124 mm;Net weight 1.4 kg

Mounting type When used in shipbuilding, installation on a 35 mm standard mounting rail is not permitted.

Product features, product functions, product components / general:

Cascading in the case of a redundant ring / at reconfiguration time of <~0.3~s 100

Cascading in cases of star topology any (depending only on signal propagation time)
