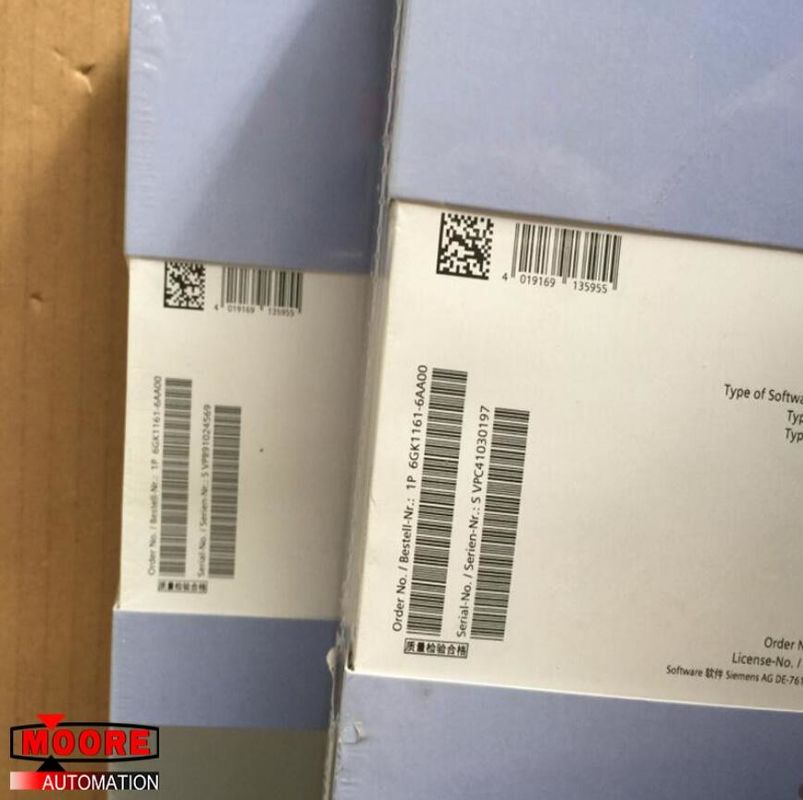

6GK1161-6AA00 6GK1 161-6AA00 CP1616 Siemens Module Ethernet PCI Card

Product Details

Communications processor CP 1616 PCI card (32 bit; 33/66M Hz; 3.3/5 V) with ASIC ERTEC 400 for connection to PROFINET IO with 4-port real-time switch (RJ45) via development kit DK-16XX PN IO; NCM PC

Transfer rate: 100 Mbit/s

Interfaces

Number of electrical connections:

at the 1st interface / acc. to Industrial Ethernet 4

for power supply 1

Type of electrical connection:

at the 1st interface / acc. to Industrial Ethernet RJ45 port

for power supply Low-voltage socket for hollow plug 3.5 mm (-) / 1.3 mm (+)

Supply voltage, current consumption, power loss:

Type of voltage / of the supply voltage DC

Supply voltage :1 / from backplane bus 5 V; external 6 ... 9 V

Relative symmetrical tolerance / at DC: at 5 V 5 %; at 12 V 5 %

Consumed current:

1 / from backplane bus / at DC / maximum 0.8 A

from external supply voltage / at DC / at 6 V / maximum 0.65 A

from external supply voltage / at DC / at 9 V / maximum 0.45 A

Power loss [W] 4 W

Power loss [W] / in switch mode / maximum 4.1 W

Product features, product functions, product components / general

Number of plug-in cards of same design / plug-in / per PC station 1
