6GK1161-3AA01 6GK1 161-3AA01 CP1613 Siemens Module Communications Processors Ethernet Card

Product Details

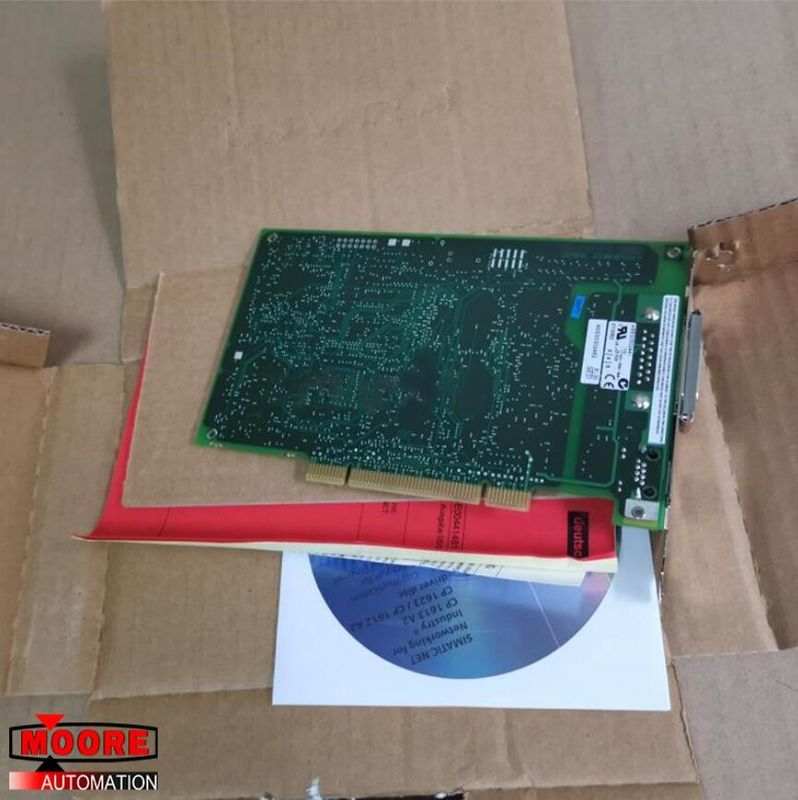

COMMUNICATION PROCESSOR CP 1613 A2 PCI CARD (32BIT;33MHZ/66MHZ; 3.3V/5V UNIVERSAL KEY) FOR CONNECTION TO IND. ETHERNET (10/100MBIT/S) WITH ITP AND RJ 45 PORT VIA HARDNET-IE S7 AND S7-REDCONNECT. SUPPORT FOR OPERATING SYSTEM SEE SIMATIC NET SW.

Transfer rate:at the 1st interface 10 ... 100 Mbit/s

Interfaces

Number of electrical connections: at the 1st interface / acc. to Industrial Ethernet 2

Type of electrical connection: at the 1st interface / acc. to Industrial Ethernet RJ45 port / 15-pin ITPType of voltage / of the supply voltage DC

Supply voltage:1 / from backplane bus 5 V; 2 / from backplane bus 12 V

Relative symmetrical tolerance / at DC: at 5 V 5 %; at 12 V 5 %

Consumed current connection: 1 / from backplane bus / at DC / maximum 0.45 A; 2 / from backplane bus / at DC / maximum 0.5 A

Active power loss 4 W

Permitted ambient conditions

Ambient temperature:

during operation 5 ... 55 °C

during storage -20 ... +60 °C

during transport -20 ... +60 °C

Relative humidity / at 25 °C / without condensation /during operation / maximum95 %

Protection class IP IP00

Software / for open communication / by means of SEND/RECEIVE / required--Yes, HARDNET-IE S7 (S7-1613)

Number of possible connections / for open communication / by means of SEND/RECEIVE / maximum 120

Software / for S7 communication / required Yes, HARDNET-IE S7 (S7-1613)

Number of possible connections / for S7/PG communication / maximum 120

Number of possible connections / for optimized S7 communication / maximum 40

Number of active connections / with multi-protocol mode 120

Number of configurable connections / per PC station 207
