| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6GK5747-1AA30-6AA0 |
| Alternate Part Number |
6GK5747-1AA30-6AA0 |
| Description |
Electrical Switch odule |
| Dimennsions |
WHD 100* 205*20mm |
| Weight |
0.29kg |
Product Details

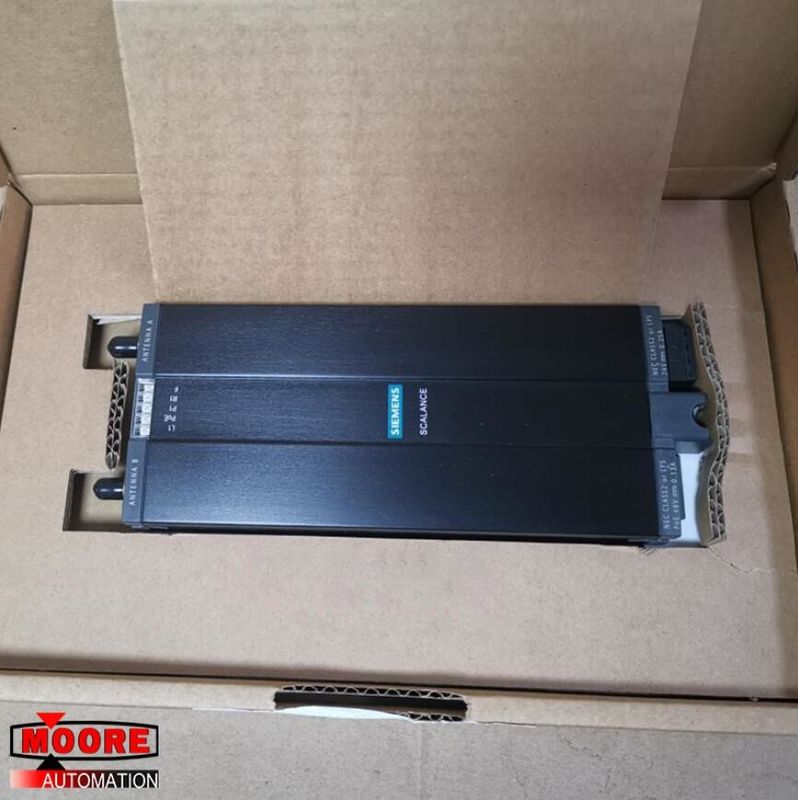

IWLAN RR Access Point SCALANCE W784-1RR, for operation outside USA IEEE 802.11b/g/a/h, Industrial Wireless LAN with rapid roaming (IWLAN RR) 2.4/5 GHz, up to 54 Mbit/s, WPA2/802.11I/11E, Observe national approvals, DC 24 V, IP30 (-20-+60 °C) 2x ext. antenna connections 1 radio interface, PoE, RJ45 (Twisted Pair) socket Scope of delivery: 24 V DC terminal block, only available as spare part.
Transfer rate: with WLAN / maximum 54 Mbit/s; for Industrial Ethernet 10, 100 Mbit/s
Transfer rate / for Industrial Ethernet: minimum 10 Mbit/s; maximum 100 Mbit/s
Transfer rate / Note Due to the simultaneous use of several radio channels, a transmission rate of 108 Mbit/s is possible (turbo mode)
Interfaces:
Number of electrical connections:
for network components or terminal equipment 1
for power supply 1
for redundant voltage supply 1
Type of electrical connection: for network components or terminal equipment RJ45 socket; for power supply 4-pole screw terminal, PoE
design of the removable storage
C-PLUG Yes
KEY-PLUG No
Interfaces / wireless:
Number of radio cards / permanently installed 1
Number of electrical connections / for external antenna(s) 2
Type of electrical connection / for external antenna(s) R-SMA (socket)
Product feature / external antenna can be mounted directly on device Yes
Supply voltage, current consumption, power loss:
Type of voltage / of the supply voltage DC
Supply voltage / 1: from terminal block 24 V
Supply voltage / 2: from terminal block 48 V
Supply voltage: from Power-over-Ethernet acc. to IEEE802.3at for type 1 and IEEE802.3af 48 V
Consumed current:
at DC / at 24 V / typical 0.23 A
at DC / at 48 V / typical 0.12 A
with Power-over-Ethernet according to
IEEE802.3at for type 1 and IEEE802.3af / typical
