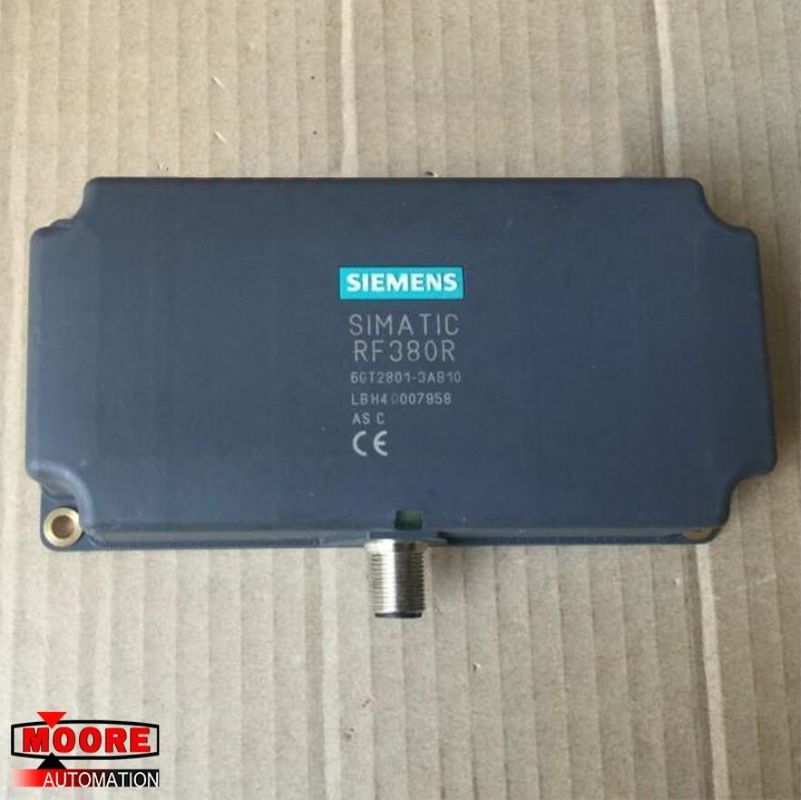

6GT2801-3AB10 Siemens Module RF380R Reader

Product Details

SIMATIC RF300 READER RF380R (RF300+ISO15693) RS422/232-INTERFACE (3964R) IP 67, -10 UP TO +60 DGR/C, 160 X 80 X 41 MM WITH INTEGRATED ANTENNA.

Wireless frequencies:

Operating frequency / rated value 13.56 MHz

Electrical data:

Range / maximum 200 mm

Transfer rate / with radio transmission / maximum 106 kbit/s

Product property / multitag-capable No

Transmission rate / at point-to-point connection / serial / maximum 115.2 kbit/s

Transmission time / for user data:

for write access / per byte / typical 0.13 ms

for read access / per byte / typical 0.13 ms

Mechanical data:

Mounting distance / for metal surfaces / recommended / minimum 0 mm

Supply voltage, current consumption, power loss:

Supply voltage / for DC

rated value 24 V

minimum 20.4 V

maximum 28.8 V

Consumed current / At 24 V / with DC: typical 0.16 A

Permitted ambient conditions:

Ambient temperature

during operating -25 … +70 °C

during storage -40 … +85 °C

during transport -40 … +85 °C

Protection class IP IP67

Resistance against shock 500 m/s²

Resistance against vibration 200 m/s²
