6GK1503-3CB00 6GK1 503-3CB00 Siemens Profibus Olm

Product Details

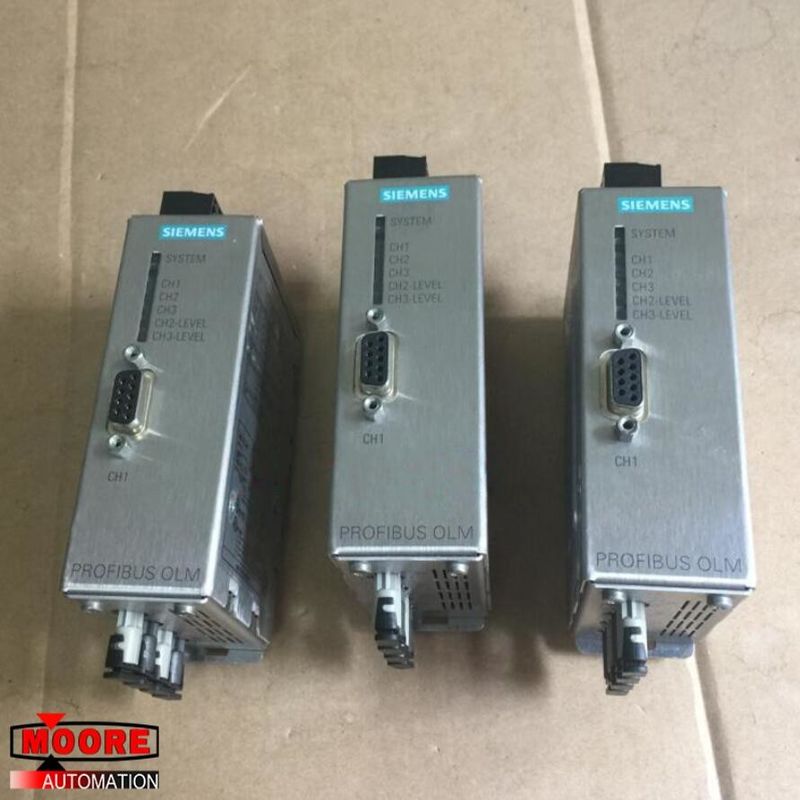

PROFIBUS OLM/G12 V4.0 OPTICAL LINK MODULE W. 1 RS485 AND 2 GLASS-FOC-INTERFACES (4 BFOC-SOCKETS) FOR STANDARD DISTANCES UP TO 2850 M, WITH WITH SIGNAL. CONTACT AND MEASURING OUTPUT

Transfer rate / with PROFIBUS: 9.6 kbit/s ... 12 Mbit/s

Transfer rate / with PROFIBUS: PA 45.45 kbit/s

Number of electrical/optical connections / for networkcomponents or terminal equipment / maximum 3

Number of electrical connections:

for network components or terminal equipment 1

for measuring device 1 1

for signaling contact 1

for power supply 1

for redundant voltage supply 1

Type of electrical connection:

for network components or terminal equipment 9-pin Sub-D socket

for measuring device 2-pole terminal block

for power supply and signaling contact 5-pole terminal block

Number of optical interfaces / for fiber optic cable 2

Design of the optical interface / for fiber optic cable BFOC port

Optical data:

Damping ratio / of the FOC transmission link:

for glass FOC with 50/125 µm / at 3 dB/km / maximum 10 dB

for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum 12 dB

propagation delay [bit] 6.5 bit

Connectable optical power relative to 1 mW:

for glass FOC with 50/125 µm / at 3 dB/km -16 dB

for glass FOC with 62.5/125 µm / at 3.5 dB/km -13 dB

Optical sensitivity relating to 1 mW:

for glass FOC with 50/125 µm / at 3 dB/km -28 dB

for glass FOC with 62.5/125 µm / at 3.5 dB/km -28 dB

Wavelength:

for glass FOC with 50/125 µm / compatible with interface / at 3 dB/km 860 nm

for glass FOC with 62.5/125 µm / compatible with interface / at 3.5 dB/km 860 nm

Wire length:

for glass FOC with 50/125 µm / at 3 dB/km / maximum 3 km

for glass FOC with 62.5/125 µm / at 3.5 dB/km / maximum 3 km

Signal-Inputs/outputs:

Operating voltage / of the signaling contacts / at DC / Rated value 24 V

Operating current / of the signaling contacts / at DC /maximum 0.1 A
