| Brand/Manufacturer |
Siemens/GERMANY |
| Part Number |
6ES7158-3AD00-0XA0 |
| Alternate Part Number |
6ES7158-3AD00-0XA0 |
| Description |
Electrical Switch odule |
| Dimennsions |
WHD 110* 100*81mm |
| Weight |
0.37kg |
Product Details

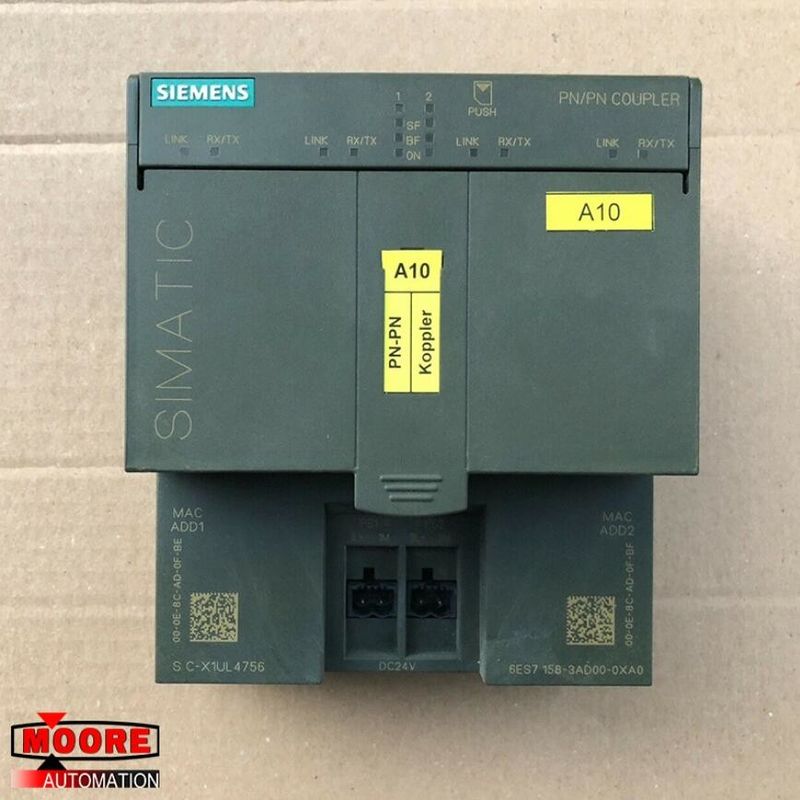

SIMATIC DP, DISTRIBUTED I/O PN/NP COUPLER COUPLING MODULE FOR CONNECTING TWO PROFINET NETWORKS TRANSFER OF PROFISAFE DATA REDUNDANTE POWERSUPPLY.
Installation type/mounting: Rail mounting Yes; Standard - DIN rail
Supply voltage:
permissible range, lower limit (DC) 20.4 V
permissible range, upper limit (DC) 28.8 V
Rated value (AC): 120 V AC No; 230 V AC No
Input current: Current consumption, max. 624 mA; 24 V DC
Inrush current, max. 6 A; at 28.8 V
Output current: Current output, max. 300 mA; 24 V DC Sensor Power; for backplane bus (5 V DC), max. 1.4 A; max. 5 V DC for EM bus
Power loss, max. 12 W
Memory:
Type of memory DDR: Flash Yes; RAM Yes
Memory available for user data 12 kbyte
Memory size 18 kbyte; Program memory
Micro Memory Card Yes; microSDHC Card (optional)
Backup: present Yes; Maintenance free, RTC requires 7 days
CPU processing times:
for bit operations, typ. 150 ns; / instruction
for word operations, typ. 1.2 µs; / instruction
for floating point arithmetic, typ. 3.6 µs; / instruction
