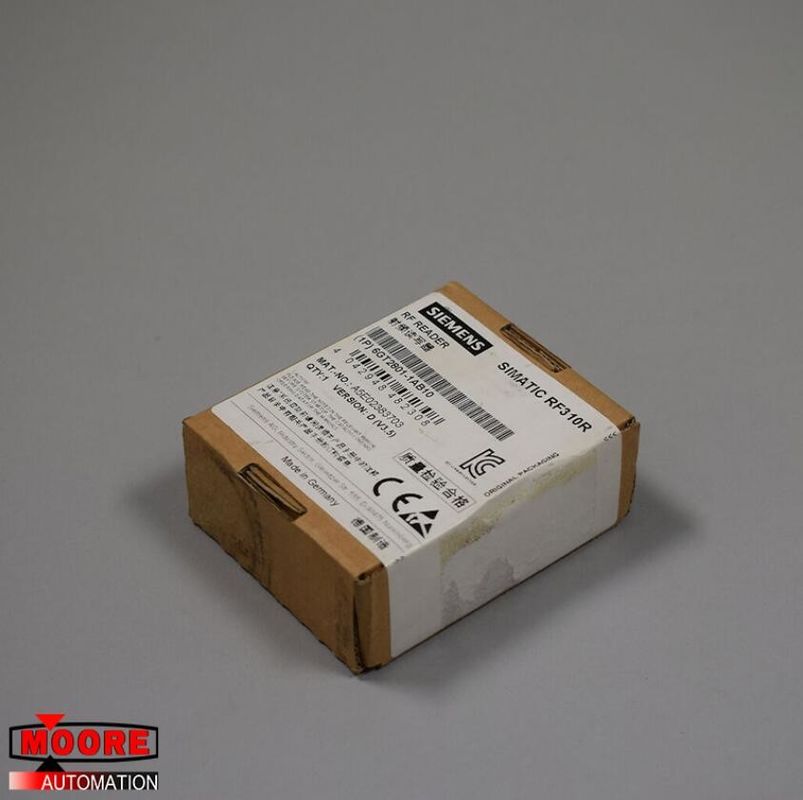

6GT2801-1AB10 6GT2 801-1AB10 RF310R Siemens Module RF Reader

Name: 6GT2801-1AB10 6GT2 801-1AB10 RF310R Siemens Module RF Reader
Brand: MOORE AUTOMATION LIMITED
SKU: 6GT2801-1AB10
Availability: InStock

Product Details:

Place of Origin:	GERMANY
Brand Name:	Siemens
Certification:	CO.CQ
Model Number:	6GT2801-1AB10

Detail Information

Place of Origin:

GERMANY

Brand Name:

Siemens

Certification:

CO.CQ

Model Number:

6GT2801-1AB10

Manufacture Year:

2020

Con 6DS1311-8AEtrol System:

6GT2801-1AB10

Application:

Nuclear Power Plant

Lead Time:

In Stock

Description:

Siemens

Weight:

4lbs

Highlight:

High Light

Highlight:

siemens control module

siemens power supply module

Trading Information

Minimum Order Quantity:

Price:

inquiry

Packaging Details:

new and original with factory sealed

Delivery Time:

today

Payment Terms:

T/T

Supply Ability:

10 pieces a day

Product Description

Brand/Manufacturer	Siemens/GERMANY
Part Number	6GT2801-1AB10
Alternate Part Number	6GT2801-1AB10
Description	RF Reader
Dimennsions	WHD 55* 30*75mm
Weight	0.20kg

Product Details

SIMATIC RF300 Reader RF310R (RF300+ISO 15693) with RS422 interface (3964R) IP67. -25 to +70 °C, 55x 75x 30 mm, with integrated antenna.

Radio frequencies:

Operating frequency / Rated value 13.56 MHz

Range / maximum 60mm; Range is dependent on transponder type: observe

Protocol / with radio transmission RF300-specific, ISO 15693, ISO 18000-3

Transfer rate / with radio transmission / maximum 106 kbit/s

Product feature / multitag-capable No

Electrical data:

Transfer rate / at the point-to-point connection / serial / maximum 115.2 kbit/s

Transmission time / for user data:

for write access / per byte / typical 0.13 ms

for read access / per byte / typical 0.13 ms

Interfaces:

Standard for interfaces / for communication RS422

Type of electrical connection M12, 8-pin

Mechanical data:

Material PA 12

Color anthracite

Mounting distance / relating to metal surfaces / recommended / minimum 0 mm

Supply voltage, current consumption, power loss:

Supply voltage : at DC / Rated value 24 V; at DC 20.4 ... 28.8 V

Consumed current / at DC / at 24 V typical 0.05 A

Ambient conditions

Ambient temperature:

during operation -25 ... +70 °C

during storage -40 ... +85 °C

during transport -40 ... +85 °C

Protection class IP: IP67

Shock resistance EN 60721-3-7 Class 7 M2

Shock acceleration 500 m/s²

Vibrational acceleration 200 m/s²

Product features, product functions, product components / general:

Display version 3-color LED

Product feature / silicon-free Yes

Standards, specifications, approvals:

Certificate of suitability Radio acc. to R&TTE guidelines EN 300 330, EN 301489, CE, FCC, cULus

Certificate of suitability:

IECEx No

MTBF 154 y
